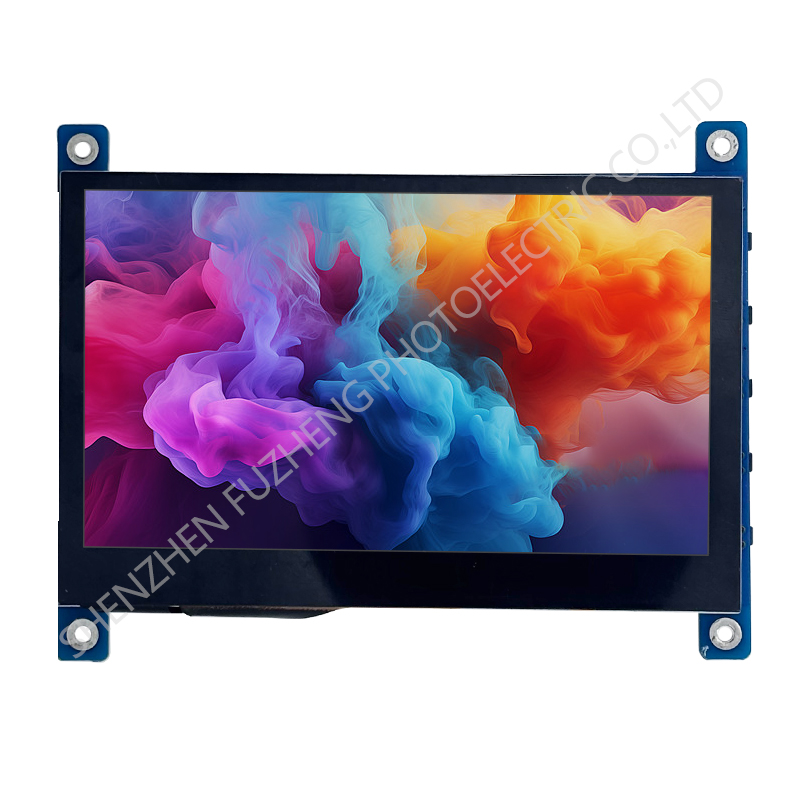

Display Size

5 inch

--

Resolution

800x480

--

Display mode

Normally Black

Viewing direction

ALL

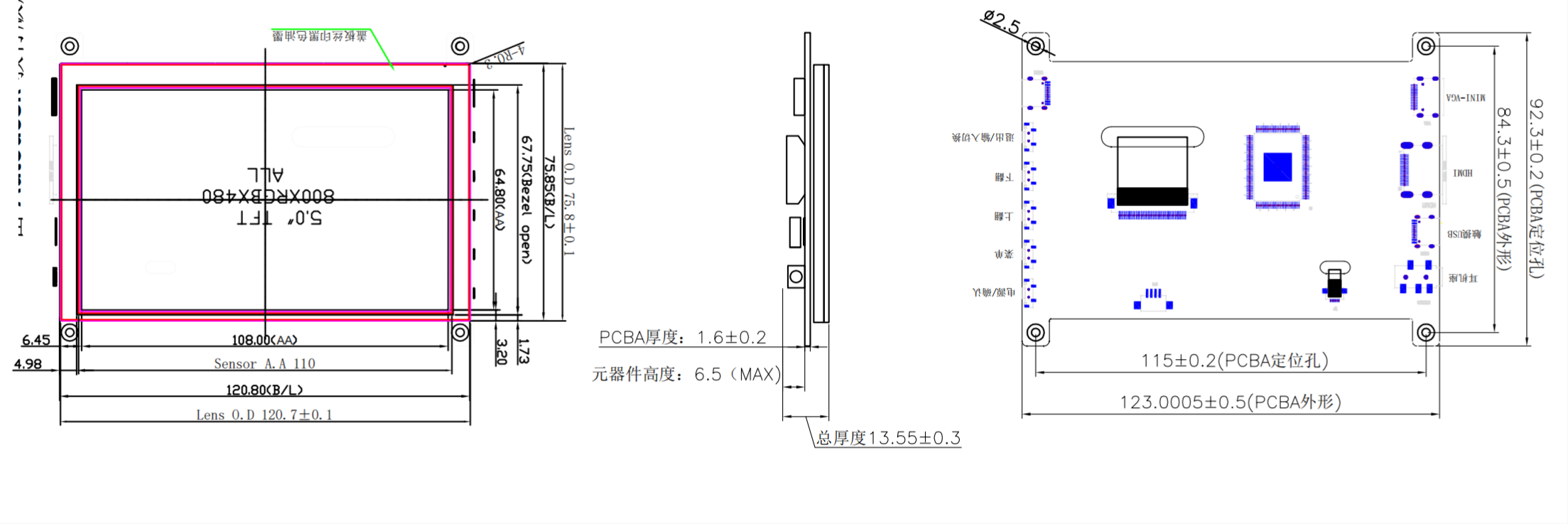

Module outline (HxVxD)

123(H) ×92.3(V) ×12.1(T)

mm

TOUCH

P+G

HDMI interface

1.4 Receiver

Power interface

USB-TYPE-C(+5V)

Audio output

8Ω1WX2

-

Temperature Range

0°C ~ +70°C

-

Min.

Typ.

Max.

Digital supply voltage

VDD

-

5

-

V

Backlight output voltage

V

-

-

-

V

Backlight output current

I

-

-

-

mA

TFT output voltage

VDD

-

3.3

-

V

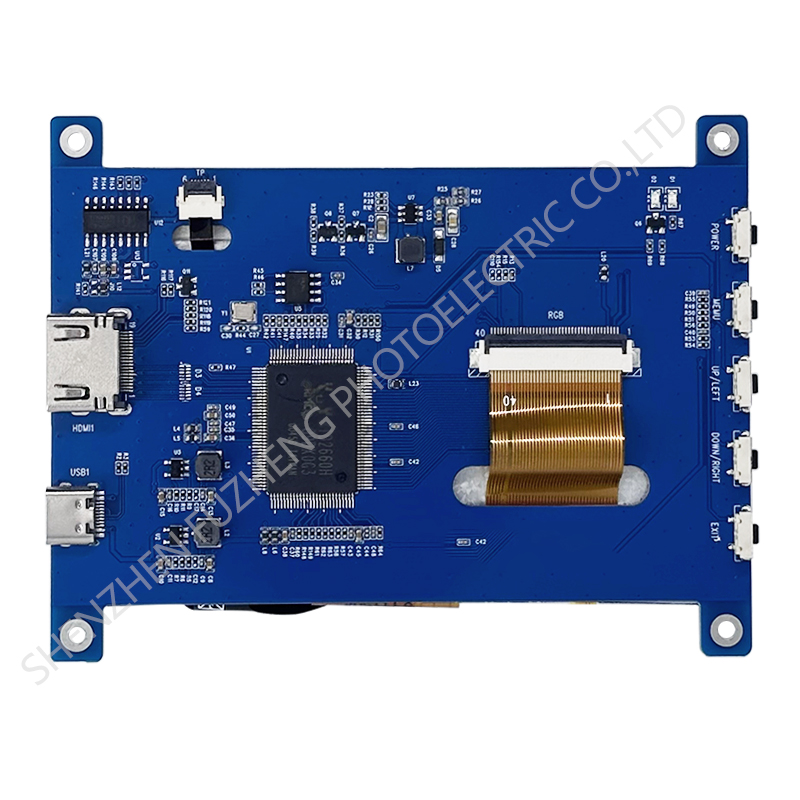

1

HDMI

HDMI-IN

2

USB

+5V-IN

3

USB-TOUCH

USB-TOUCH

4

TP

IIC-CAPACITIVE TOOUCH

5

TFT-RGB

40PIN/RGB

6

SPK

STEREO 8Ω/1Wx2

1

LEDK

back light power supply negative       +18V

2

LEDA

back light power supply positive

3

GND

Ground

4

VCC

Power supply   +3V3

5-12

R0-R7

Red Data

13-20

G0-G7

Green Data

21-28

B0-B7

Blue Data

29

GND

Ground

30

DCLK

Colock signal

31

DISP

+3V3

32

HSYNC

Horizontal sync input in RGB mode(short to GND if not used)

33

VSYNC

Vertical sync input in RGB mode(short to GND if not used)

34

DE

Data enable

35

NC

No Connection

36

GND

Ground

37-40

NC

NC

1

R-

right channel negative pole

2

R+

right channel positive pole

3

L+

Left channel positive pole

4

L-

Left channel negative pole

1

RST

Touch Reset Signal

2

VDD

Touch Power supply  +3V3

3

GND

Ground

4

INT

Touch Interrupt

5

SDA

Touch IIC Data signal

6

SCL

Touch IIC Clock signal

Viewing Angle range

Horizontal

Θ₃

CR > 10

-

80

-

Deg.

Θ₉

-

80

-

Deg.

Vertical

Θ₁₂

-

80

-

Deg.

Θ₆

-

80

-

Deg.

Contrast ratio

CR

1500

Luminance

Lv

Θ = 0°

-

500

-

White Chromaticity

X_w

-

0.311

-

Y_w

-

0.388

-

Reproduction

of color (C light)

Red

R_x

-

-

-

R_y

-

-

-

Green

G_x

-

-

-

G_y

-

-

-

Blue

B_x

-

-

-

B_y

-

-

-

Color Gamut (C light)

50

%
