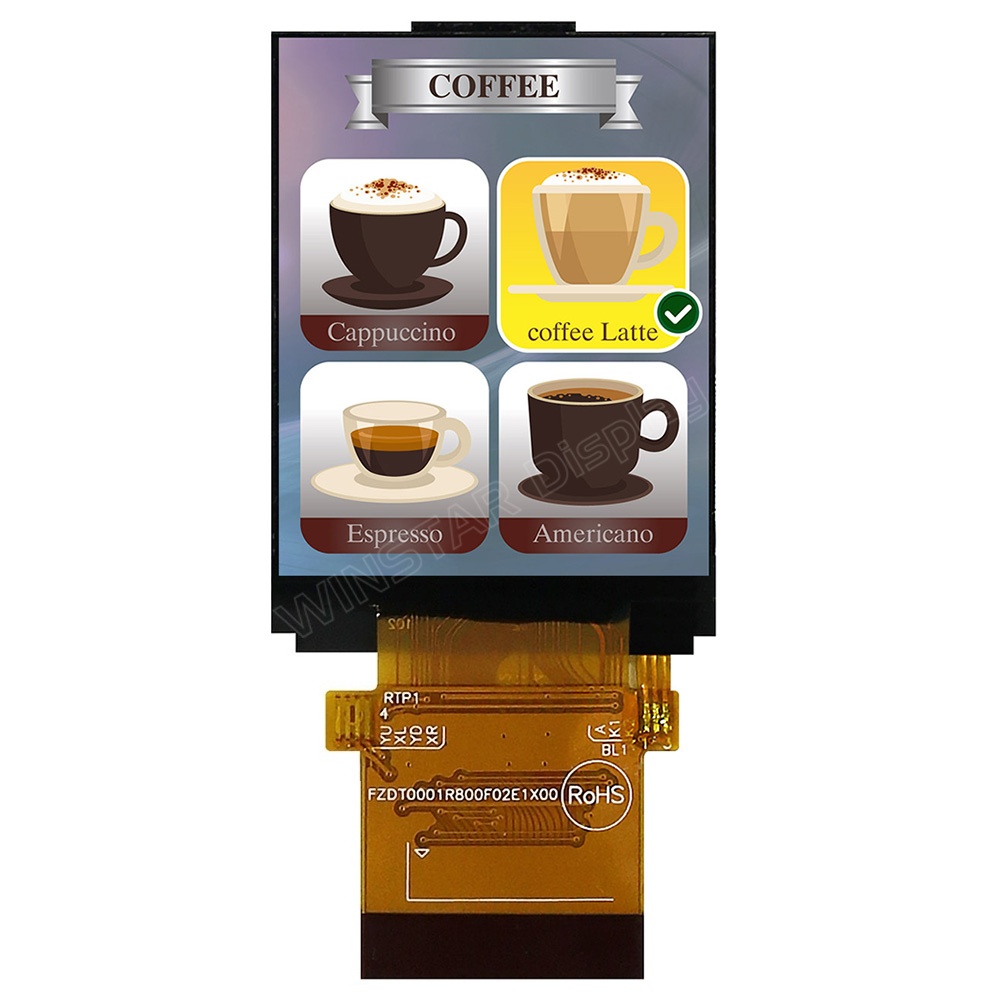

1.77 inch TFT LCD, TFT ST7735 Display

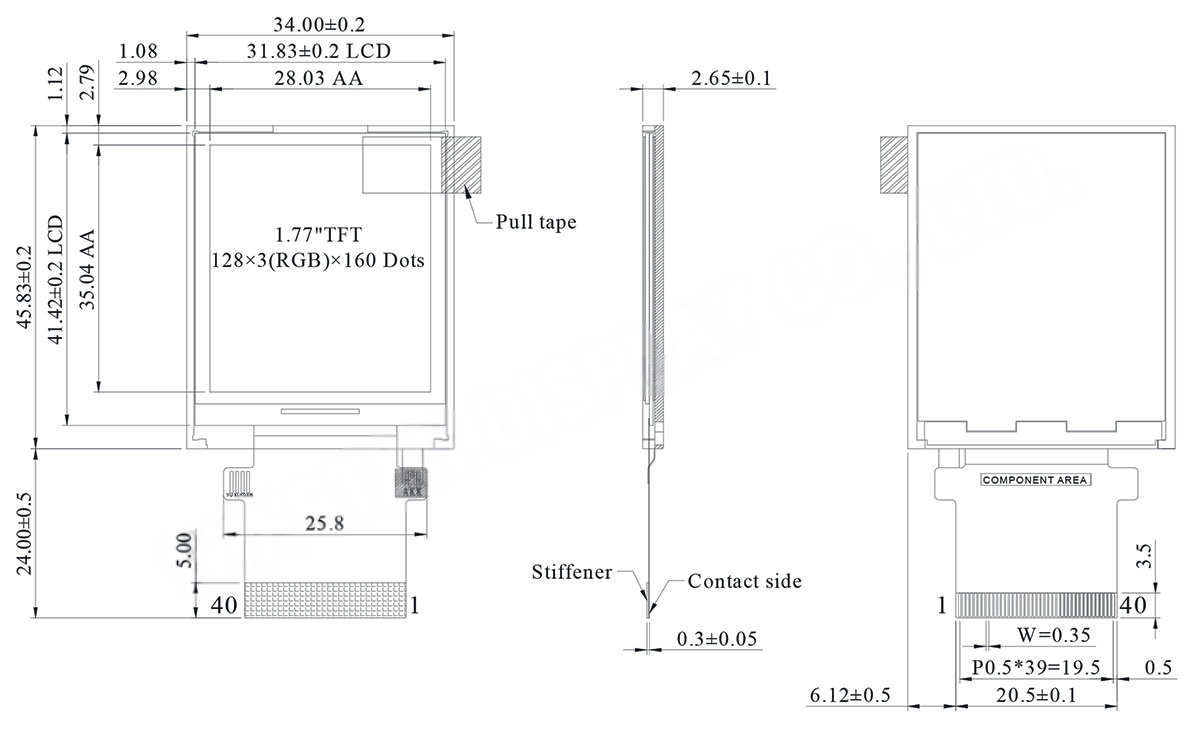

Full color 128x160 TFT-LCD display module, diagonal size 1.77-inch. This module is built in with ST7735S IC; it supports 8080 8/16-bit parallel and serial 3-wire SPI interface. This model is having module dimension of 34.0 x 45.83 mm and Active area size of 28.03 x 35.04 mm; it's supply voltage range from for analog is 2.5V to 4.8V, typical value 2.75V.
This 1.77" TFT LCD display with ST7735 IC is featured with brightness 500 cd/m2(typical value) and contrast ratio (typical value) of 500:1. it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃. it is a portrait mode LCD module, if you would like to use it as landscape mode, please contact with us for more technical support.
►1.77 inch TFT LCD
►Resolution : 128x160 dots
►View Direction: 6H
►Interface: MCU / SPI
►IC：ST7735S (TFT ST7735 Display)
►Control-Board : No
►Brightness(cd/m²): 500
►Frame Through Hole: No
►Touch Screen : Without touch screen

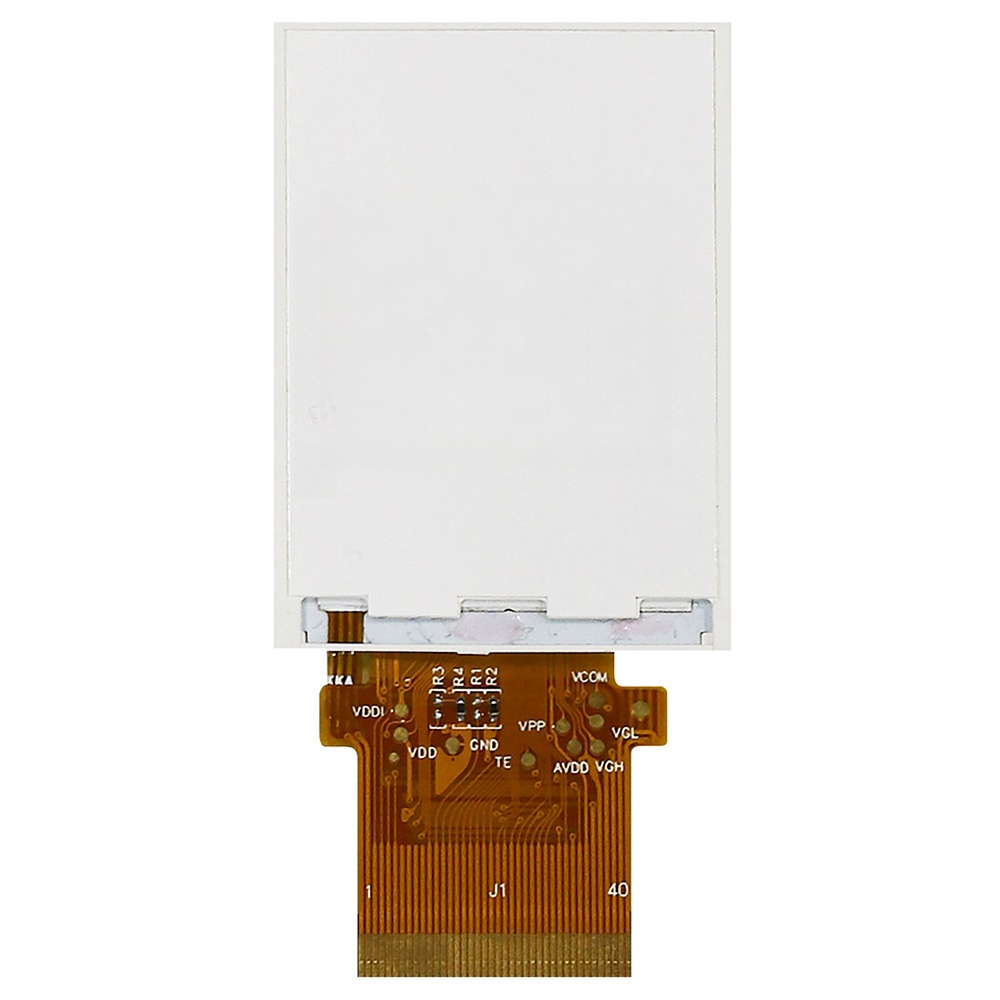

| Pin | Symbol | I/O | Function |
|---|---|---|---|
| 1 | VLED- | P | Back light cathode |
| 2 | VLED | P | Back light anode |

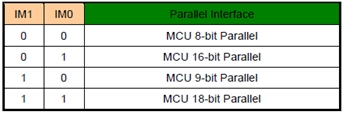

| 3 | IM0 | I | - MCU Parallel Interface Type Selection -If Not Used, Please Fix this Pin at VDDI or DGND Level.  |
| 4 | IM1 | ||
| 5 | IM2 | I | MCU Parallel Interface Bus and Serial Interface select IM2='1', Parallel Interface IM2='0', Serial Interface |
| 6 | RESET | P | Reset signal |
| 7-12 | NC | - | No Connect |
| 13-28 | DB15-DB0(SPI_SDA) | I/O | DB15:0] are used as MCU parallel interface data bus. -DBis the serial input/output signal in serial interface mode. -In serial interface, DB15:1] are not used and should be fixed at VDDI or DGND level. |
| 29 | NC | - | No Connect |
| 30 | RD | I | Read Enable in 8080 MCU Parallel Interface. -If not used, please fix this pin at VDDI or DGND level. |
| 31 | WR | I | Serial clock -Write Enable in MCU Parallel Interface. -If not used, please fix this pin at VDDI or DGND level. |
| 32 | D/C(SPI_SCL) | I | -Display data/command Selection Pin in MCU Interface. -D/CX='1': Display Data or Parameter. -D/CX='0': Command Data. -In Serial Interface, this is used as SCL. -If not used, please fix this pin at VDDI or DGND level. |
| 33 | CS(SPI_CS) | I | Chip enable |
| 34 | IOVCC | P | Interface Operation Voltage |
| 35 | VCI | P | Analog Supply Voltage |
| 36 | GND | P | Ground |
| 37-40 | NC | - | No Connect |
