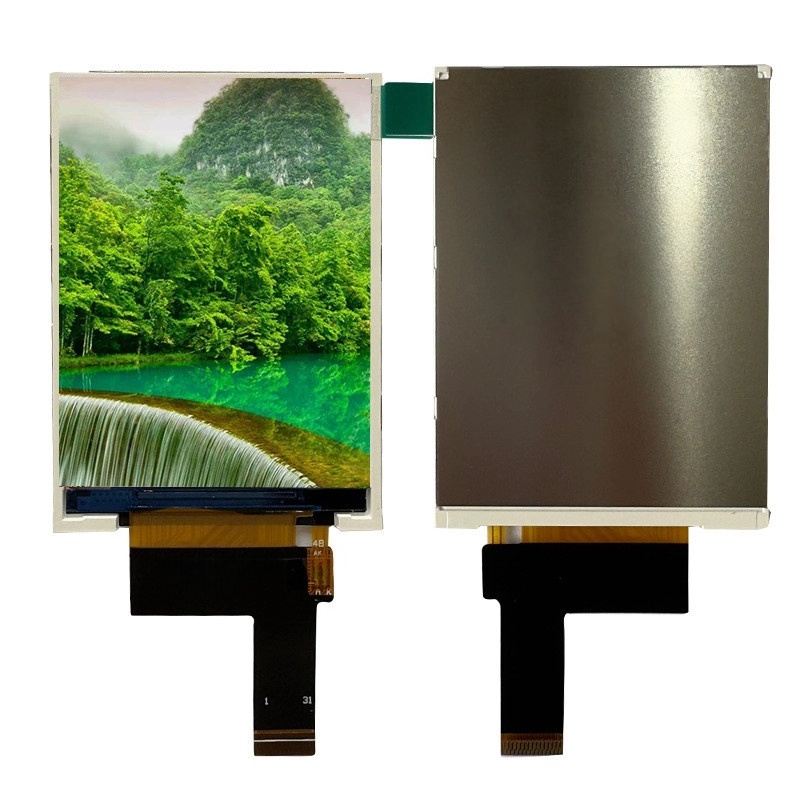

2.8 Inch TFT Module IPS Display
Product Details
Size:
2.8 Inch
Resolution:
480*640
Display Mode:
Transmissive
Colors:
262K
Viewing Direction:
Full Viewing Angle,Full View
Outline Dimension:
50.00(H)*69.20(V)*2.35(T)
Interface:
RGB
Active Area:
43.20(H) X57.60 (V)
View Direction:
ALL O’clock
Backlight:
4LEDS
Surface Luminance:
230cd/m2
Driver IC:
ST7701S
Logic Voltage:
2.5V-3.3V
Operating Temperature:
-10℃~60℃
Storage Temperature:
-20℃~70℃
Weight:
TBD
| NO. | Symbol | Function |
| 1 | GND | Ground |
| 2 | VCC | Power setting |
| 3 | IOVCC | Power setting |
| 4 | GND | Ground |
| 5-9 | R4-R0 | Data bus. |
| 10-15 | D5-G0 | Data bus. |
| 16-20 | B4-B0 | Data bus. |
| 21 | SDA | Serial in/out signal. |
| 22 | DCLK | Dot clock signal for RGB. |
| 23 | DE | DE |
| 24 | HS | Line synchronizing signal for RGB. |
| 25 | VS | Frame synchronizing signal for RGB. |
| 26 | SCL | Serial interface clock. |
| 27 | CS | Chip selection. |
| 28 | RESET | RESET |
| 29 | LEDA | LED power anode |
| 30 | LEDK | LED power cathode |
| 31 | GND | Ground |
