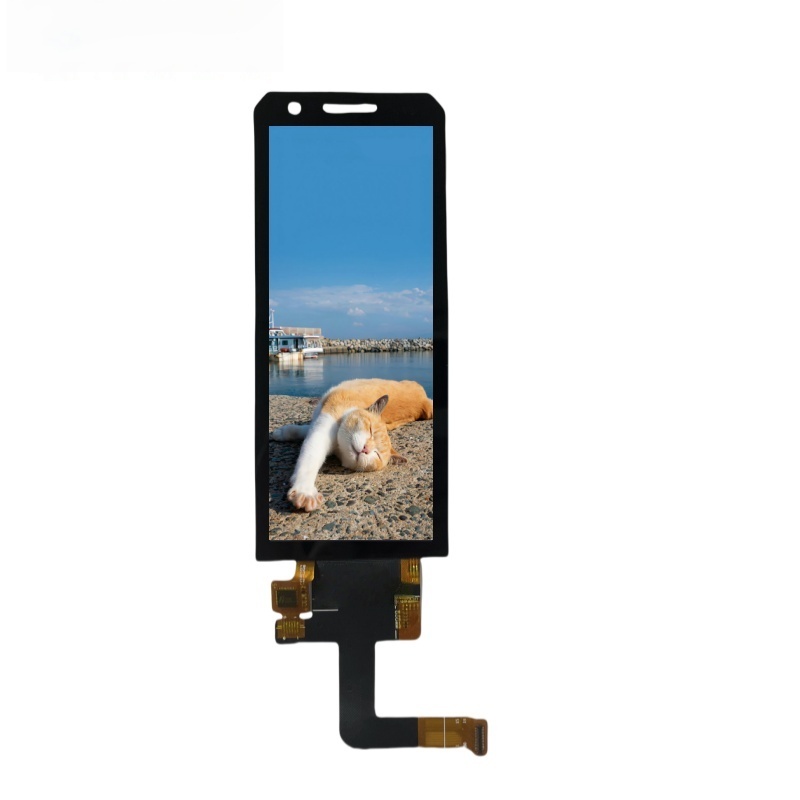

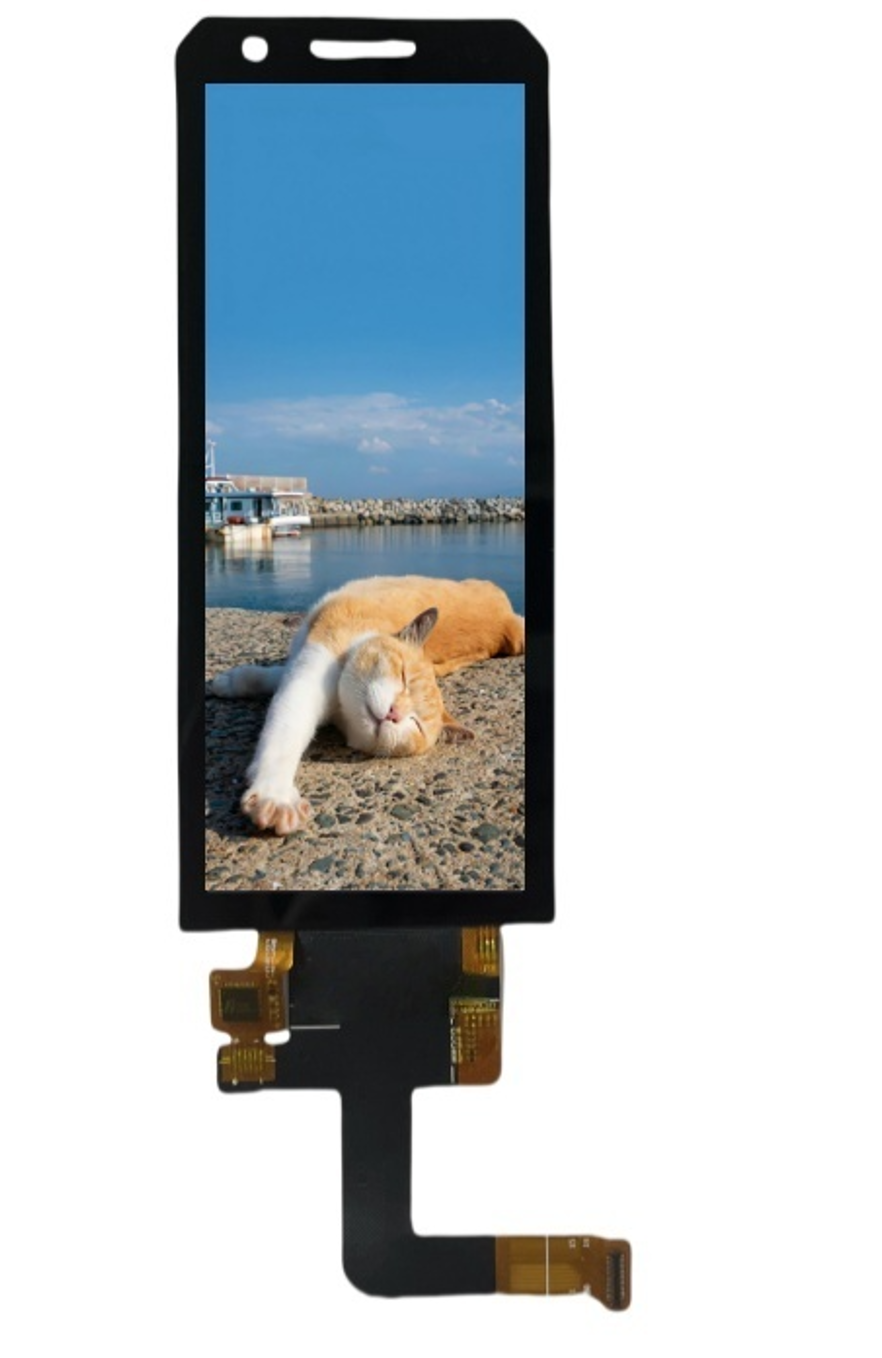

4.5 Inch MIPI Oncell TFT LCD Screen
High-quality 4.5-inch ONCELL LCD screen
Resolution: 480*1170
Product Ratio: 21.9:9
Support Interface: MIPI
Display Area: 43.2 * 105.3 (mm)

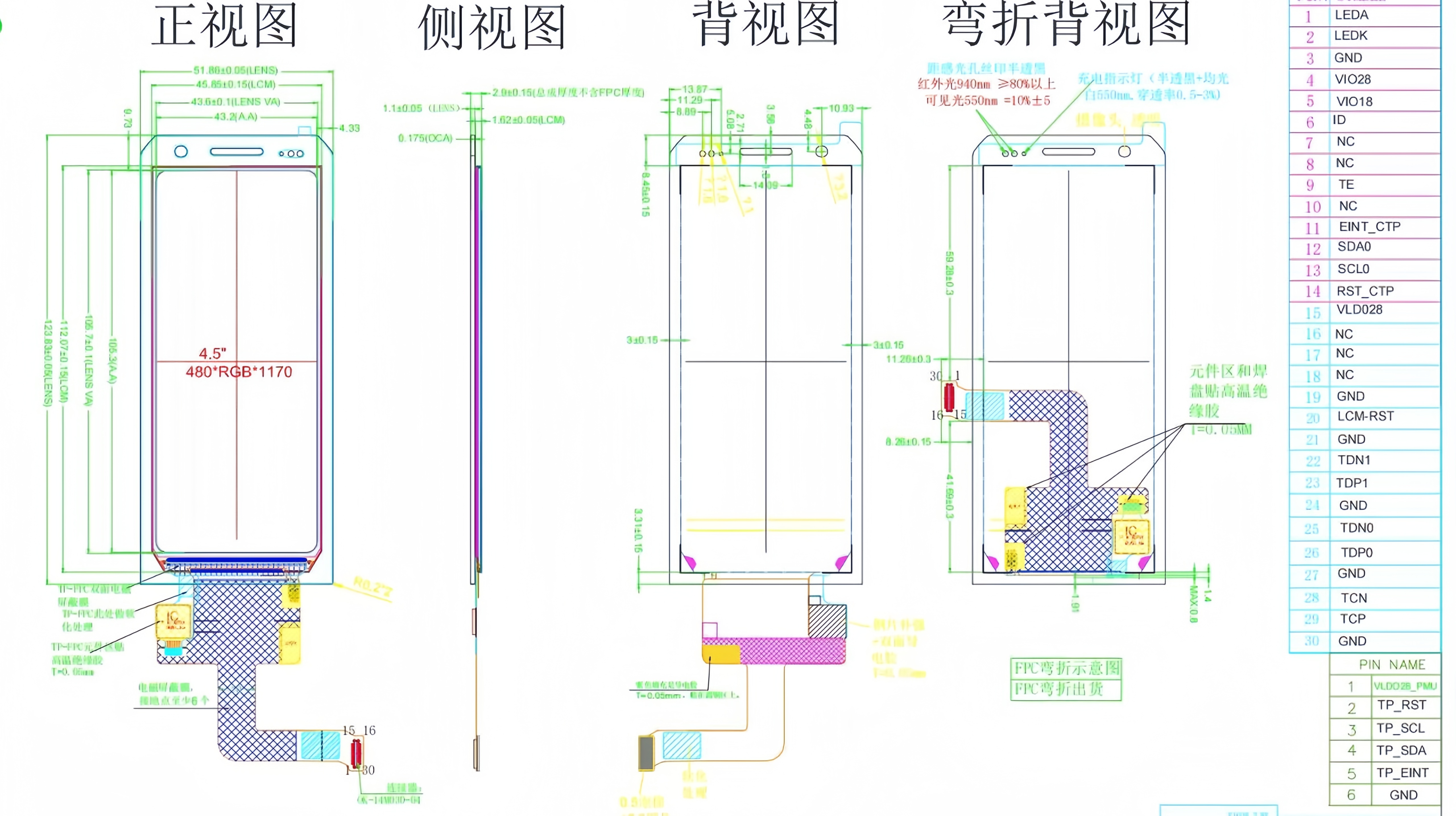

LCM Dimensions: 45.85*112.07*1.59(mm)
Brightness: 450cd/m²（MIN）
Product Type: TFT(a-si)
Display Type: Normal Black
View Angle: U/D/L/R: 80/80/80/80
Touch Type: ONCELL
Operating Temperature: -20℃~+70℃
Storage Temperature: -30℃~+80℃
Customization: Yes
Core advantages of the product
✓ Ultra-narrow frame design: 45.85×112.07×1.59mm compact body, 21.9:9 cinema-level ratio, suitable for narrow and long device space
✓ Full-view HD display: 480×1170 resolution + 450cd/m² brightness (minimum), 80° wide viewing angle (U/D/L/R), clearly visible in strong light environment
✓ Integrated touch solution: ONCELL fitting technology, sensitive touch response, support glove/wet hand operation (capacitive touch optional)
✓ Wide temperature durability: -20℃~70℃ working temperature, -30℃~80℃ storage temperature, suitable for harsh industrial and outdoor scenes
Multiple application areas
♢ Consumer electronics terminals
Handheld smart devices: portable game consoles, translators, POS Terminals
Wearable extension equipment: vehicle-mounted central control sub-screen, drone remote control, smart home control panel
Advantages: narrow and long ratio adapts to vertical screen operation, low power consumption design extends equipment life
♢ Industrial Control and the Internet of Things
Equipment human-machine interface (HMI): small PLC control panel, machine tool operation screen, smart meter display
Internet of Things terminal: logistics handheld terminal, warehouse scanner, industrial-grade PDA
Advantages: wide temperature performance to cope with high and low-temperature workshop/outdoor operations, MIPI interface compatible with mainstream MCU solutions
♢ Medical and automotive electronics
Medical equipment: portable oximeter, infusion pump display, beauty instrument operation screen
In-vehicle scene: vehicle-mounted rearview mirror display, head-up display (HUD) auxiliary screen, in-vehicle atmosphere control screen
Advantages: anti-glare surface treatment (optional), in line with medical-grade/automotive-grade reliability standards (customizable certification)
♢ Intelligent hardware innovation
Creative electronic equipment: AR glasses auxiliary display, smart home appliance touch interface
Advantages: support customized touch algorithm, adapt to special-shaped cutting and special shell integration
Prepare a product inquiry
Send the model or page link together with the following requirements so the team can check the relevant details:
- Display size, resolution and interface
- Module dimensions, connector and mounting constraints
- Touch requirements and operating environment
- Sample quantity, production volume and schedule
Where should I confirm specifications?
Use the specifications on the selected product page. Ask the team for the current datasheet and confirm any missing values before selection or ordering.
How do I request pricing and availability?
Include the model, quantity and delivery destination in your inquiry. Pricing, availability and compatibility should be confirmed for your specific request.
