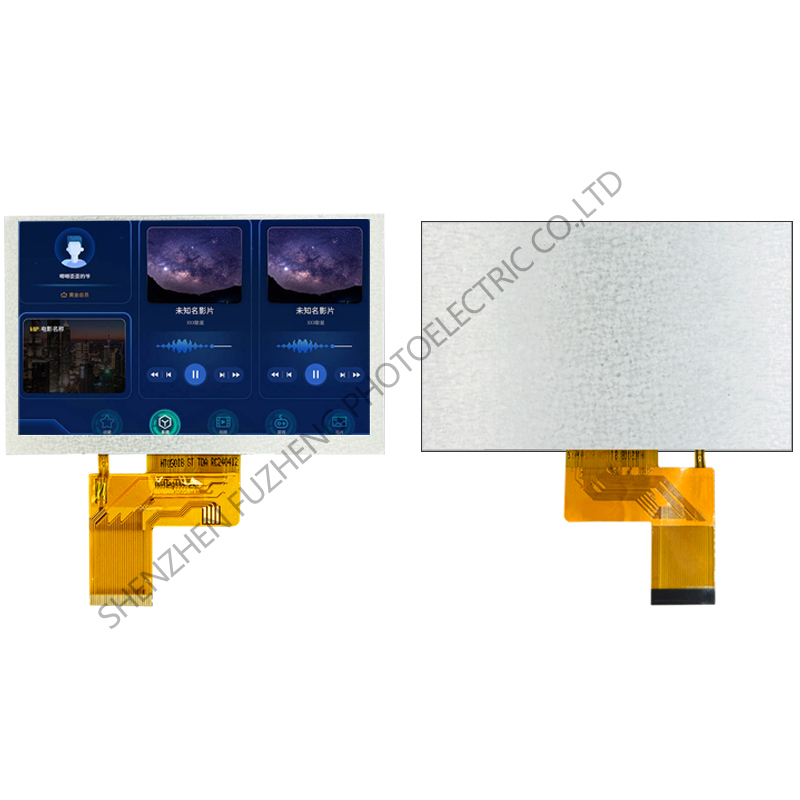

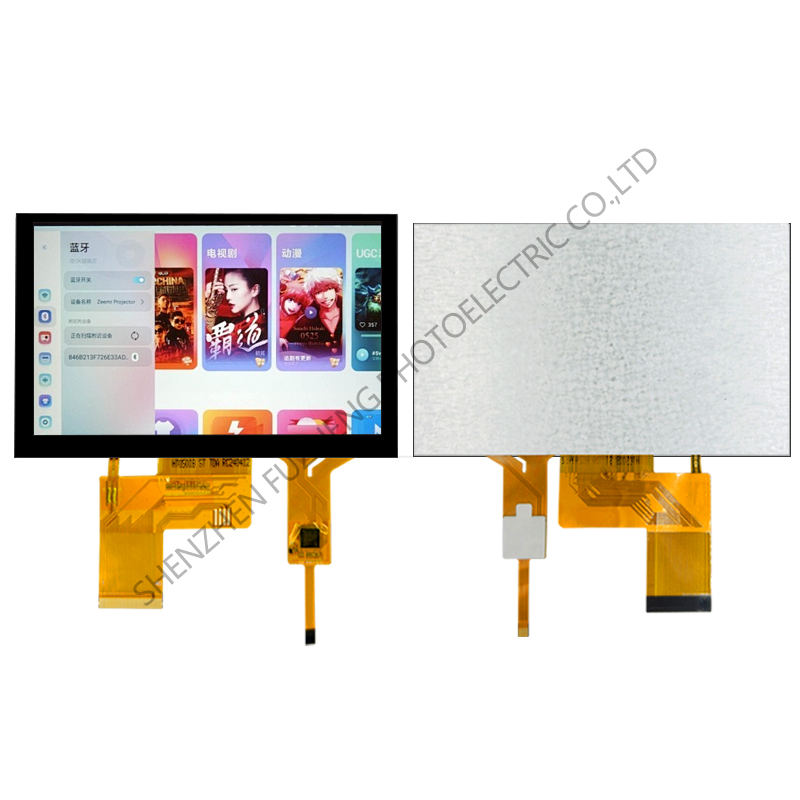

5 inch Landscape TFT display resolution 800*480

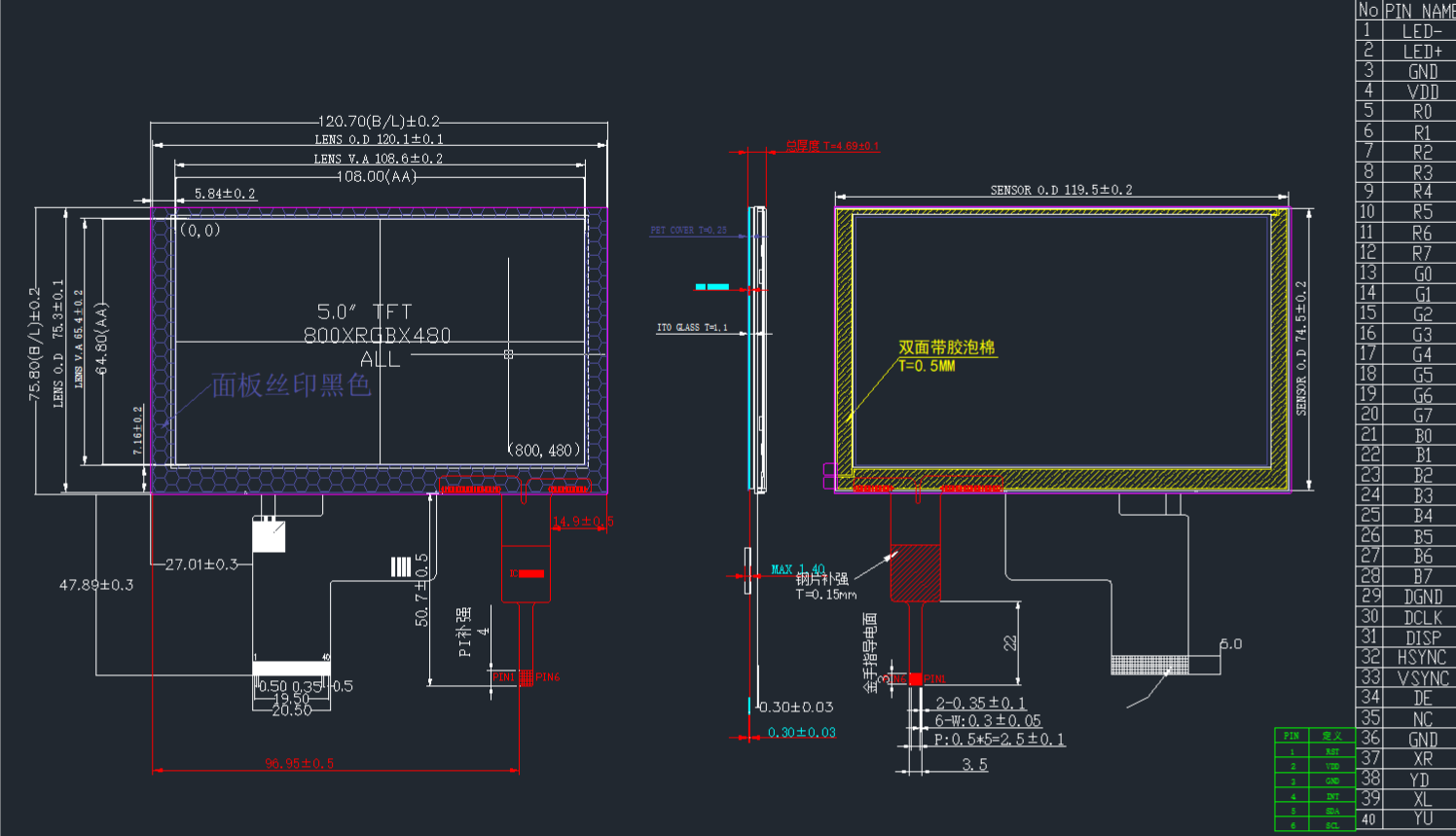

General Specifications:
FZ5001C40-TP is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 800x 480pixels. This product accords with RoHS environmental criterion.
Item | Contents | Unit |
LCD Type | TFT TRANSMISSIVE | / |
Viewing direction | ALL | O' Clock |
Module outline (W x HxD) | 120.8x75.95*2.9(Typ) | mm |
Active area (WxH) | 108.00*64.80 | mm |
Number of Dots | 800(RGB) x480 | / |
Driver IC | ST7262 | / |
Backlight Type | 6*3chips white LED | / |
Interface Type | Parallel RGB 24-bit | / |
Input voltage | 3.3 | V |
ELECTRICAL CHARACTERISTICS
Item | Symbol | Values | Unit | Remark | ||
Min. | Typ. | Max. | ||||
Power Voltage | DVDD | 3.0 | 3.3 | 3.6 | V | |
AVDD | - | - | - | V | ||
VGH | - | - | - | V | ||
VGL | - | - | - | V | ||
Input logic high voltage | VIH | 0.7VDD | - | DVDD | V | |
Input logic low voltage | VIL | 0 | - | 0.3DVDD | V | |
Current Consumption
Item | Symbol | Values | Unit | Remark | ||
Min. | Typ. | Max. | ||||
Current for Driver
| IGH | - | 0.50 | 1 | mA | VGH=16.0V |
IGL | - | 0.54 | 1 | mA | VGL=-6.0V | |
IVDD | - | 4.2 | 10 | mA | VDD=3.3V | |
IAVDD | - | 19 | 50 | mA | AVDD=10.4V | |
BACKLIGHT CHARACTERISTICS
Item | Symbol | Min | Typ | Max | Unit | Condition |
Forward voltage | Vf | - | 18 | - | V | If=60mA |
Luminance | Lv | - | 500 | - | cd/m2 | If=60mA |
Number of LED | -- | 18 | Piece | -- | ||
Connection mode | P | 6chips serial *3 | -- | -- | ||
