4.3 inch Landscape display resolution 480(RGB) x272

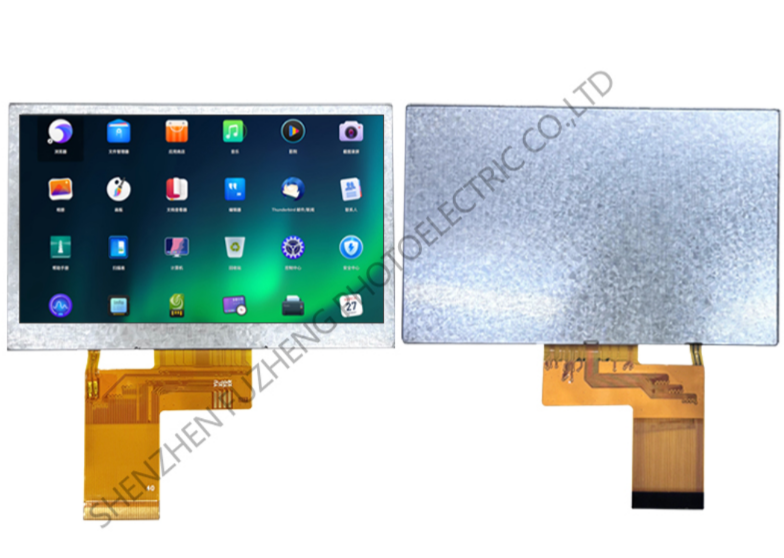

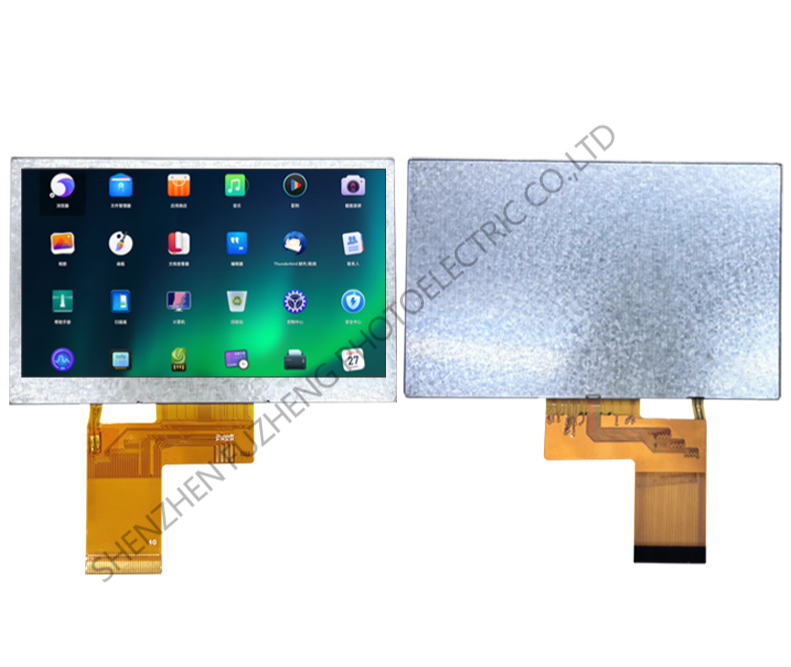

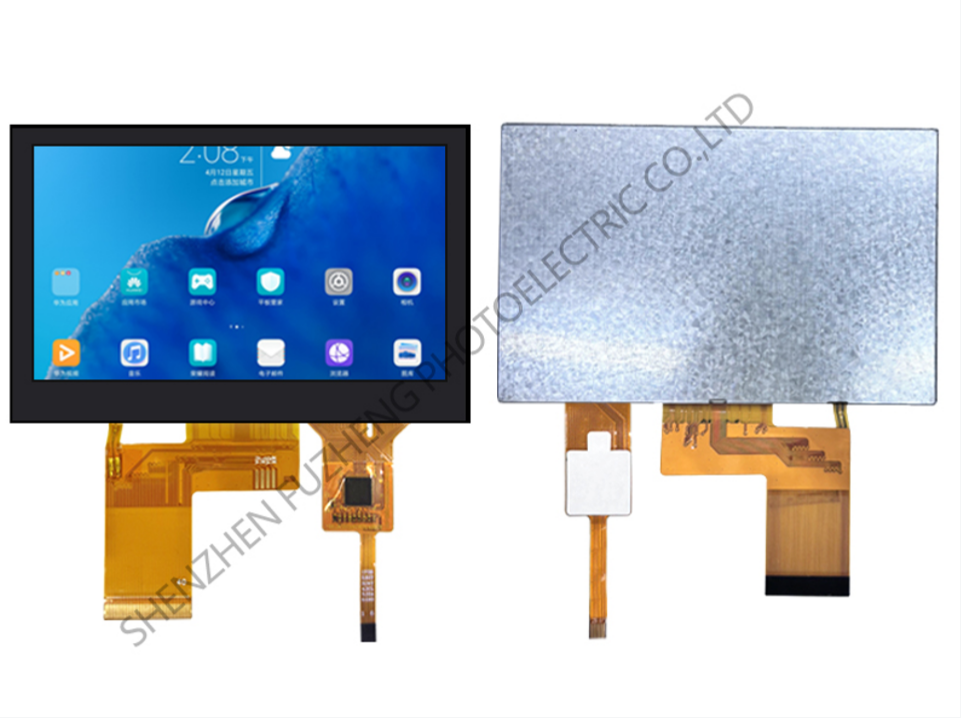

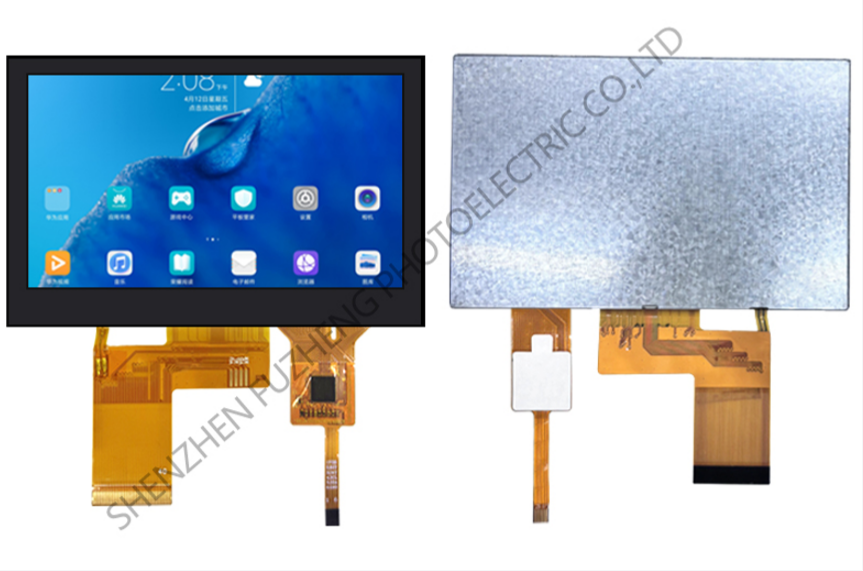

FZ43001C40-TP is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 480X272 pixels. This product accords with RoHS environmental criterion.
GENERAL SPECIFICATIONS:
Item | Contents | Unit |
LCD Type | TFT TRANSMISSIVE | / |
Viewing direction | ALL | O' Clock |

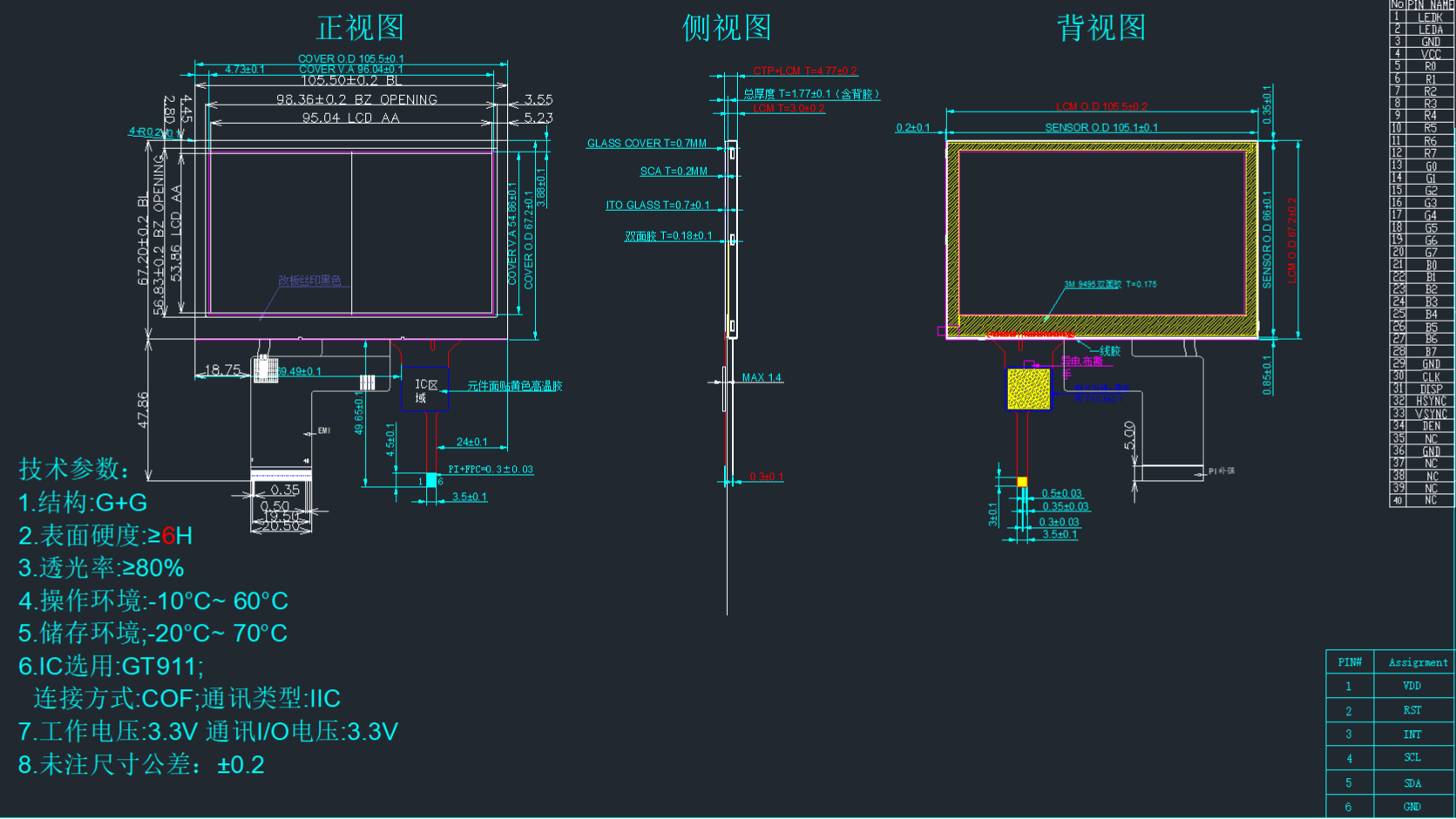

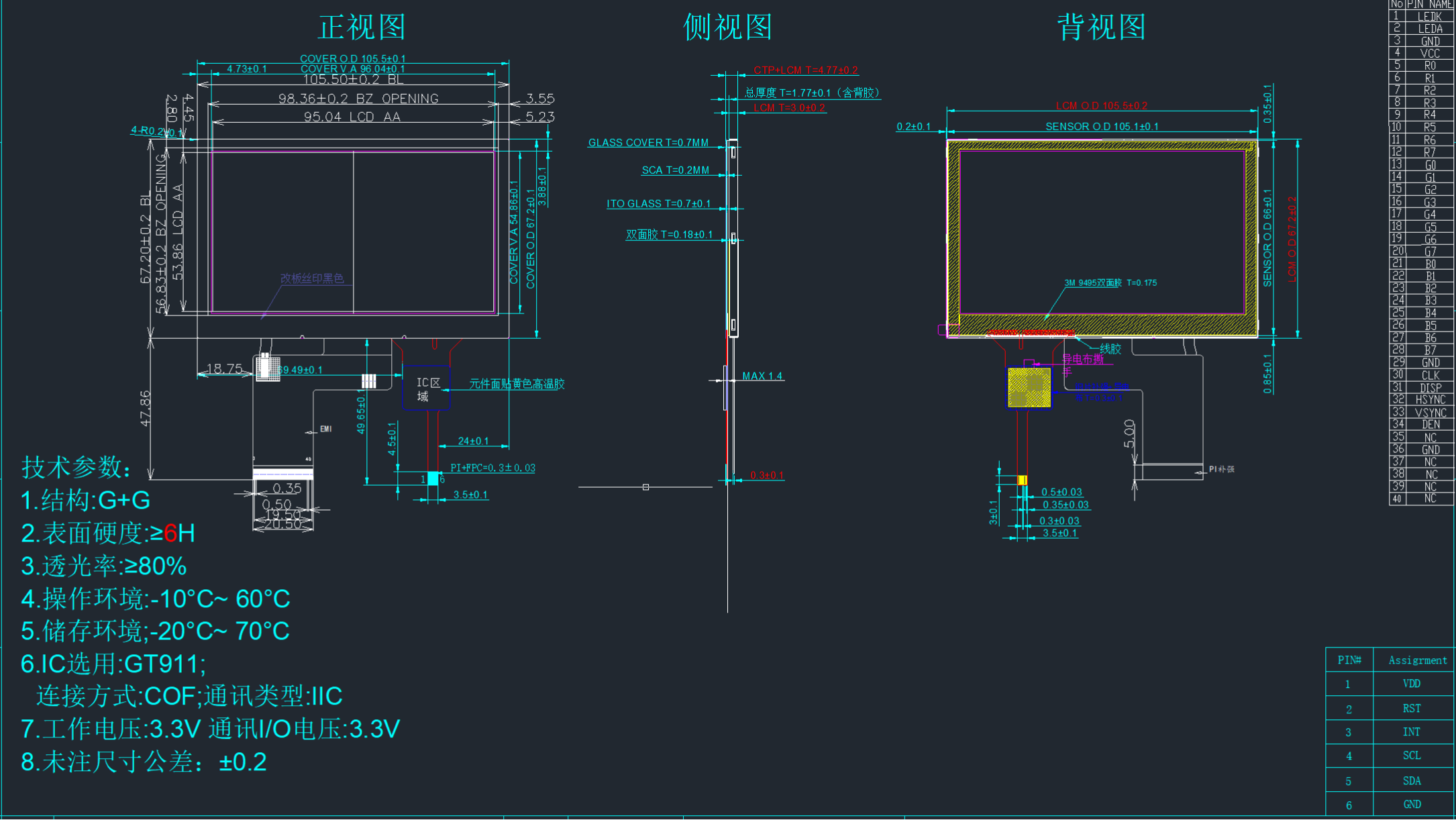

Module outline (W x HxD) | 105.40x67.10x3.0 | mm |
Active area (WxH) | 95.04x53.856 | mm |
Resolution | 480(RGB) x272 | / |
Driver IC | ST7282E | / |
Backlight Type | 7chips white LEDS, Serial | / |
Interface Type | Parallel RGB 24-Bit | / |
Input voltage | 3.3 | V |
ABSOLUTE MAXIMUM RATINGS:
Parameter | Symbol | Min | Max | Unit |
Supply voltage for logic | Vcc | -0.3 | 3.6 | V |
Input voltage | Vin | -0.3 | VCC+ 0.3 | V |
Operating temperatur | Top | -20 | 70 | ℃ |
Storage temperature | Tst | -30 | 80 | ℃ |
Humidity | RH | -- | 90%(Max60C) | RH |
ELECTRICAL CHARACTERISTICS:
Parameter | Symbol | Min | Typ | Max | Unit |
Supply voltage for logic | Vcc -Vss | 3.0 | 3.3 | 3.6 | V |
Input Current | Idd | 4 | 10 | - | mA |
BACKLIGHT CHARACTERISTICS:
Item | Symbol | Min | Typ | Max | Unit | Condition |
Forward voltage | Vf | - | 21 | - | V | If=20mA |
Luminance | Lv | - | 450 | - | cd/m2 | If=20mA |
Number of LED | -- | 7 | Piece | -- | ||
Connection mode | P | serial | -- | -- | ||
