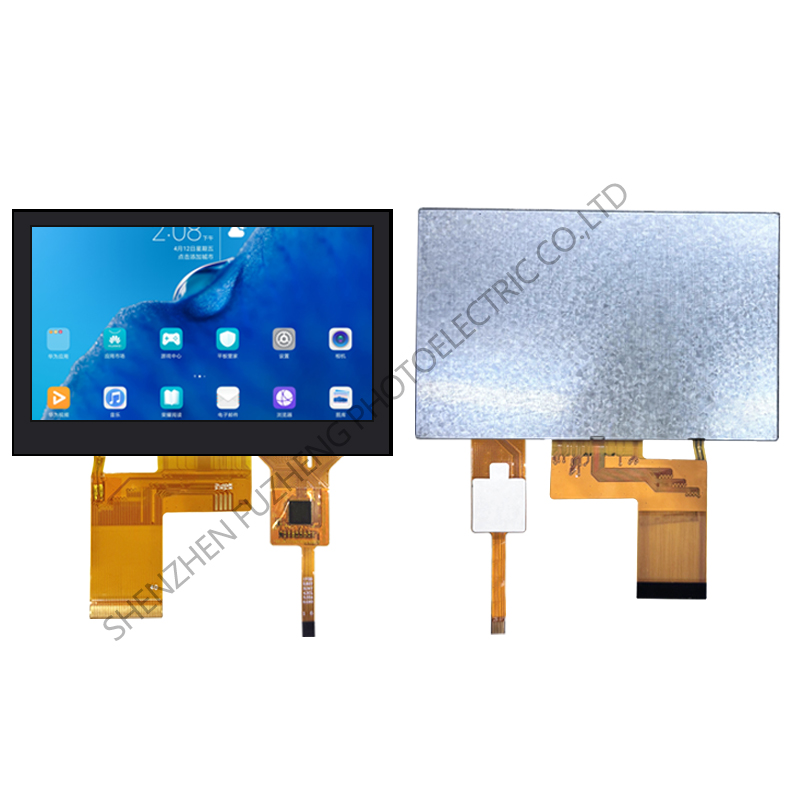

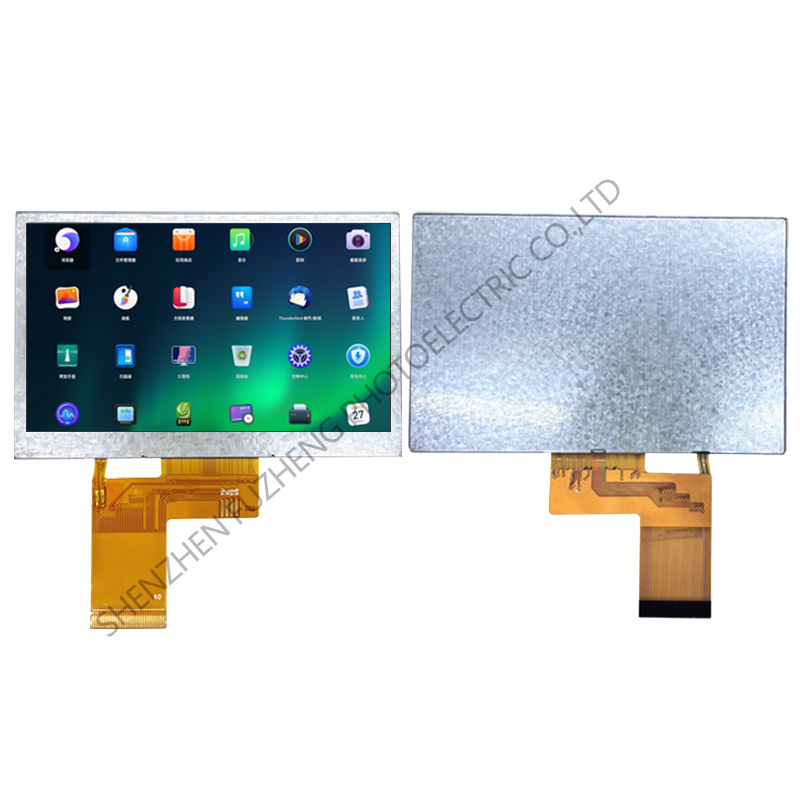

LVDS 4.3 inch 800*480, ST7262, full viewing angle, 8BIT LVDS interface, high brightness LCD with capacitive touch panel
Product Description:
FZ43001L40-TP is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 800x 480pixels. This product accords with RoHS environmental criterion.
| Item | Contents | Unit |
| Model | FZ43001L40-TP | |
| LCD Type | TFT TRANSMISSIVE | / |
| Viewing Direction | ALL | O' Clock |
| Size | 4.3 | |
| Module Outline (W x HxD) | 105.5 x67.2x3.0 | mm |
| Active Area (WxH) | 95.04x53.86 | mm |
| Resolution(pixels) | 800(RGB) x480 | / |
| Backlight Type | 7 *1chips white LED | / |
| Interface Type | LVDS | / |
| Input Voltage | 3.3 | V |
| Luminance | 380/550 | cd/m2 |
| Backlight Type And Color: | LED White | |
| Controller IC: | ST7262 | |
| Touch Type: | CTP (capacitive touch panel) | |
| LED Life Span: | 5000 | hour |
| Operating Temperature Range: | -20 -- 70 °C | |
| Storage Temperature Range: | -30 -- 80 °C |
INTERFACE PIN CONNECTIONS
LCD-PIN:
Pin.No | Symbol | Function |
1 | NC | NC |
2 | VDD | Power ground |
3 | VDD | Power ground |
4 | NC | NC |
5 | RESET | Globle reset pin |
6 | STBYB | Standby mode,Normally pulled high STBYB=”1”,normal operation STBYB=”0”,timing controller,source driver will turn off,all output are High-Z |
7 | GND | Ground |
8 | RXIN0- | -LVDS differential data input |
9 | RXIN0+ | +LVDS differential data input |
10 | GND | Ground |
11 | RXIN1- | -LVDS differential data input |
12 | RXIN1+ | +LVDS differential data input |
13 | GND | Ground |
14 | RXIN2- | -LVDS differential data input |
15 | RXIN2+ | +LVDS differential data input |
16 | GND | Ground |
17 | RXCLKIN- | -LVDS differential clock input |
18 | RXCLKIN+ | +LVDS differential clock input |
19 | GND | Ground |
20 | RXIN3- | -LVDS differential data input |
21 | RXIN3+ | +LVDS differential data input |
22 | GND | Ground |
23 | NC | No connection |
24 | NC | No connection |
25 | GND | Ground |
26 | NC | No connection |
27 | NC | NC |
28 | SELB | 6bit/8bit mode select |
29 | NC | NC |
30 | GND | Ground |
31 | LED- | LED Cathode |
32 | LED- | LED Cathode |

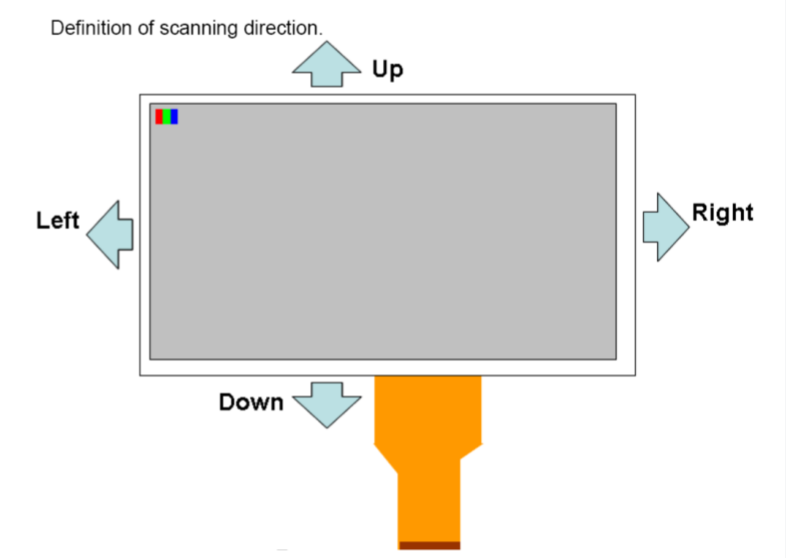

33 | L/R | Horizontal inversion |
34 | U/D | Vertical inversion |
35 | VGL | Gete OFF Voltage |
36 | NC | NC |
37 | NC | NC |
38 | VGH | Gete ON Voltage |
39 | LED+ | LED Anode |
40 | LED+ | LED Anode |
TP-PIN:
1 | VDD | Touch Power supply |
2 | RST | Touch Reset Signal |
3 | INT | Touch Interrupt |
4 | SCL | Touch IIC Clock signal |
5 | SDA | ouch IIC Data signal |
6 | GND | Ground |

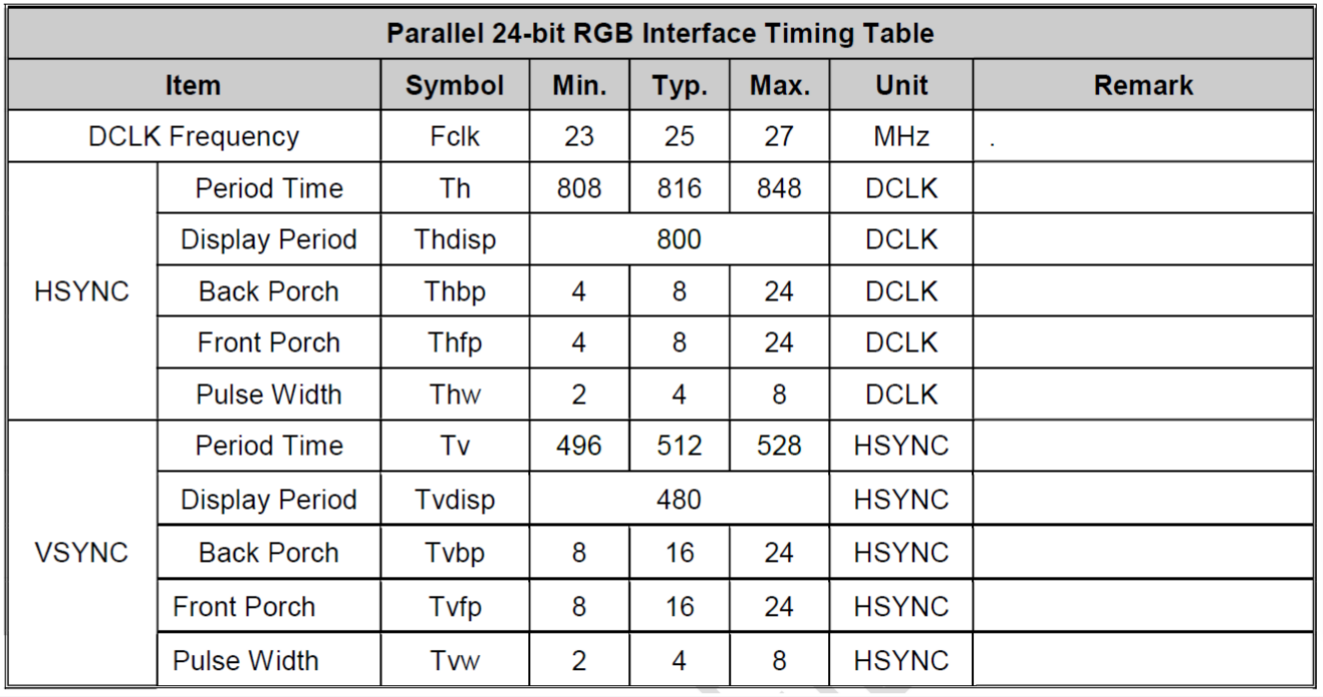

Timing characteristics

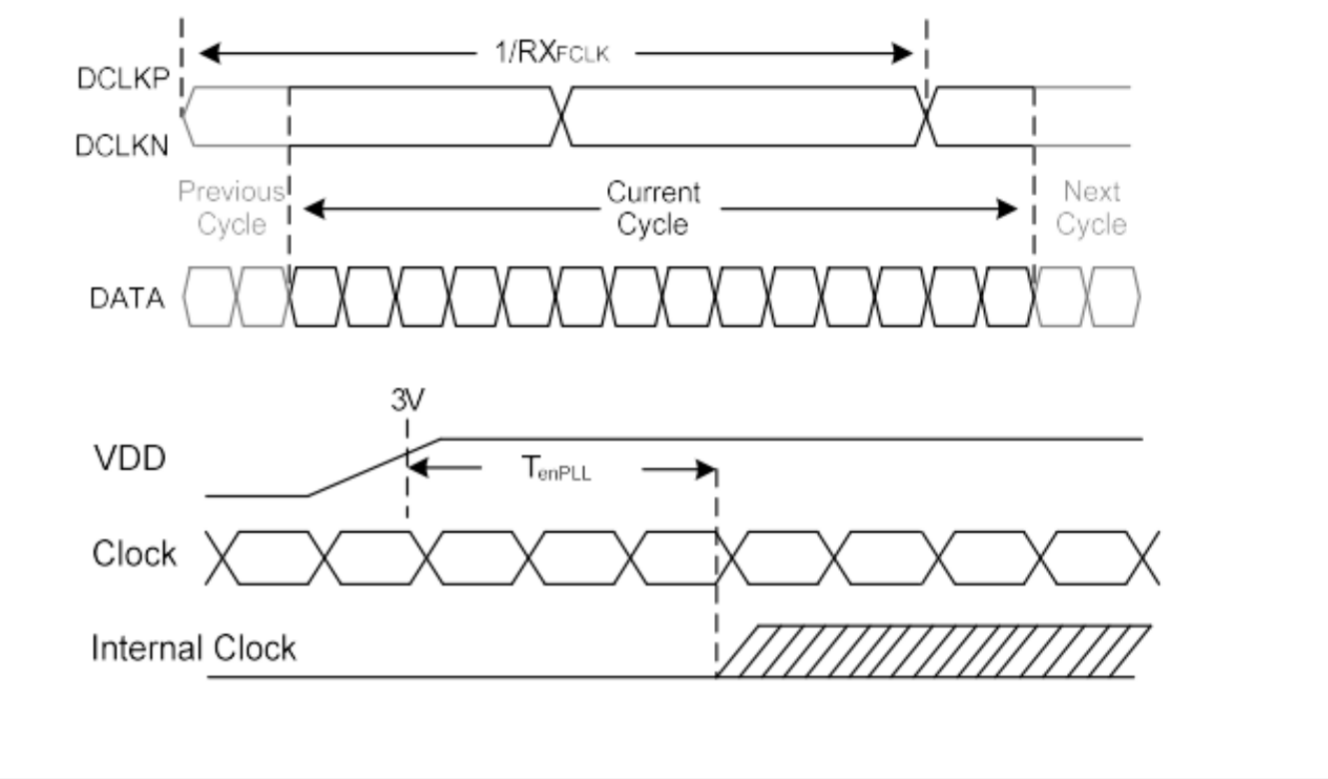

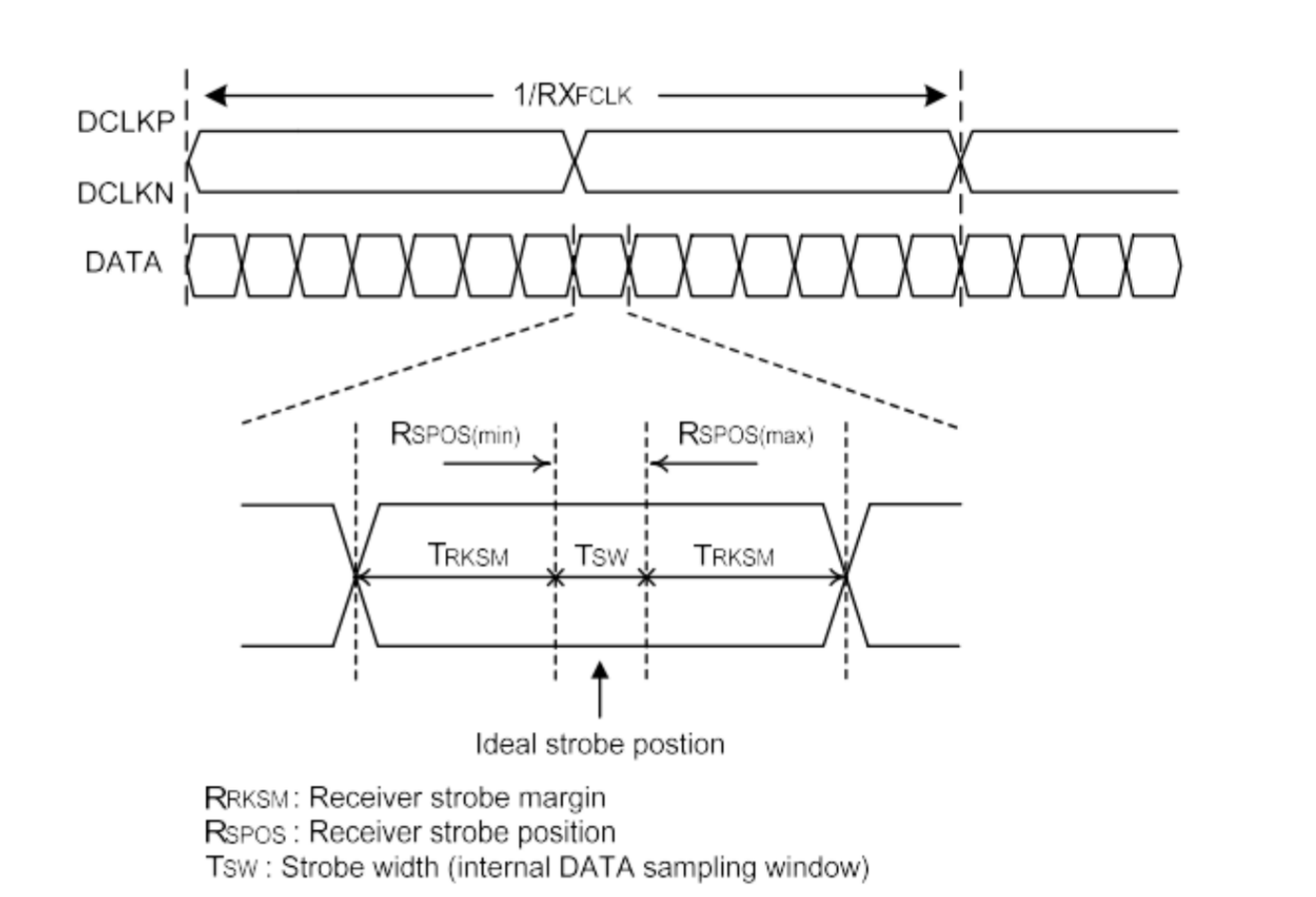

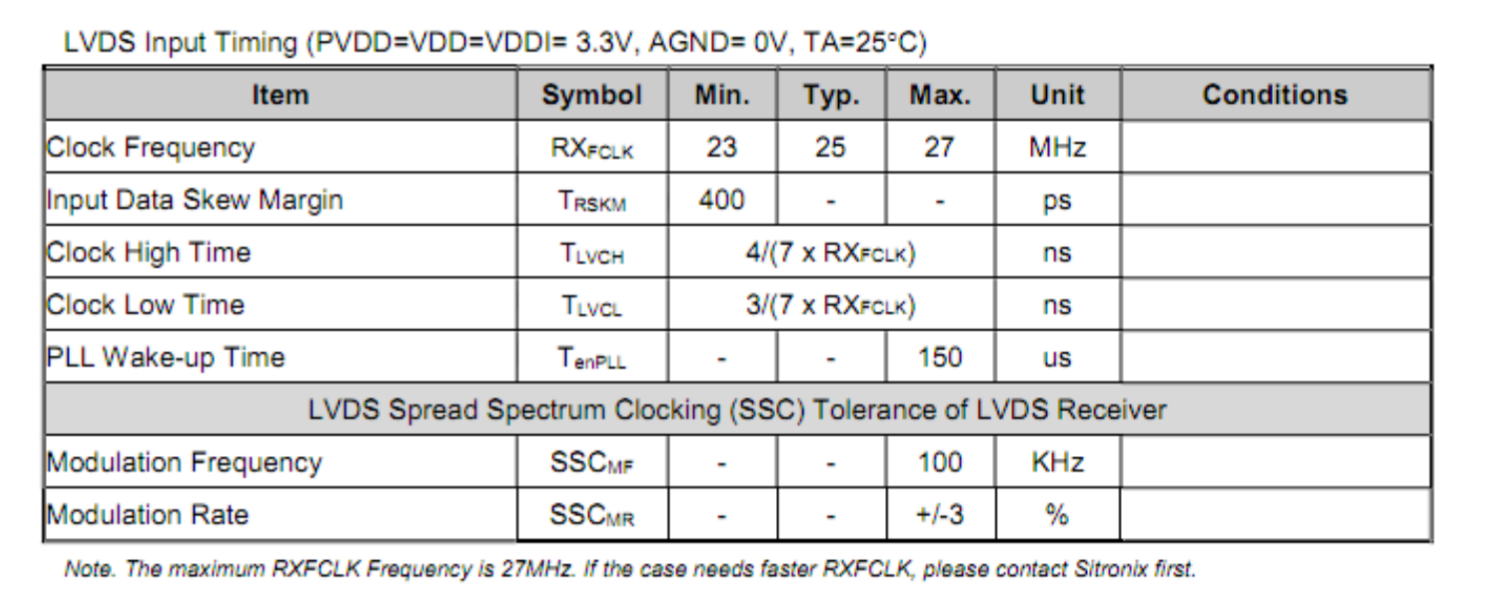

LVDS

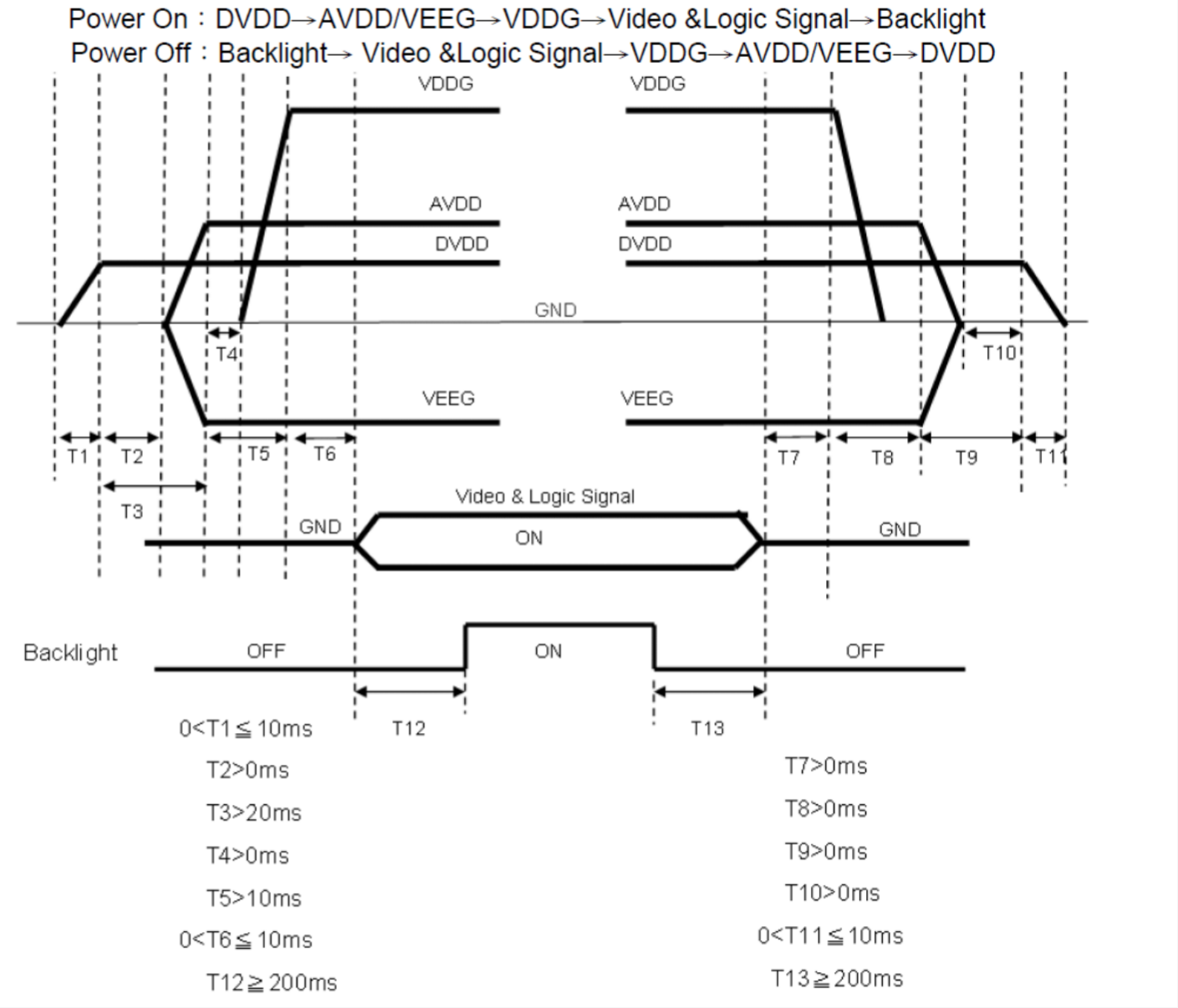

5.1.2 Power、Signal sequence
