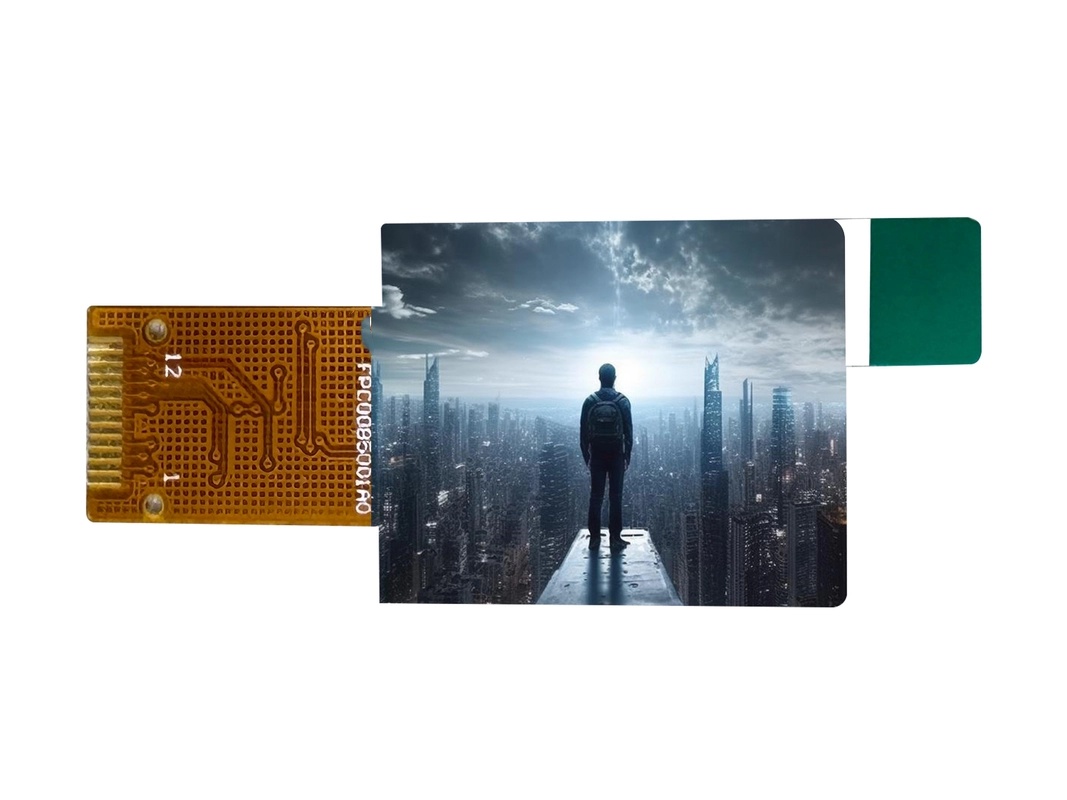

0.85 inch TFT Touch Panel , Square LCD Display with 128x128 resolution
Product Details
Size:
0.85 Inches
Resolution:
128*128
Dimensions:
21.30(H)*25.75(V)*2.49(T)
Interface:
SPI
Viewing Angle:
ALL O'OCLOCK
Brightness:
450 Cd/m2
Backlight Type:
LED
Touch Screen:
YES
Operating Temperature:
-10℃~60℃
Storage Temperature:
-20℃~70℃
Active Area:
15.21(H)*15.21(V)
Response Time:
30ms
Contrast Ratio:
1200
Power Consumption:
70mw
Highlight:
Square LCD Digital TFT Touch Panel
,128x128 Square LCD Display
,128x128 TFT Touch Panel
