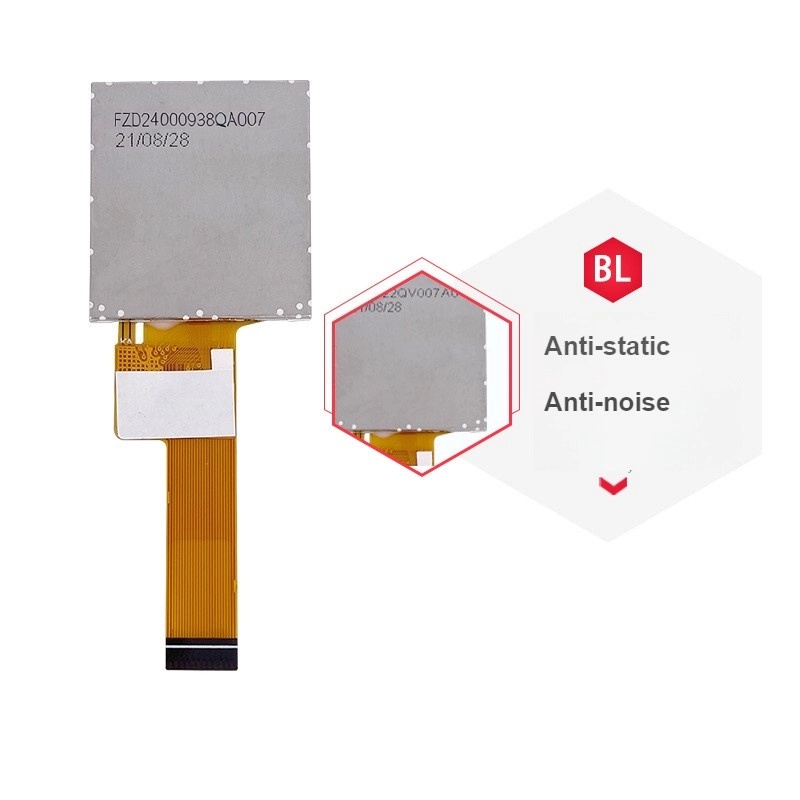

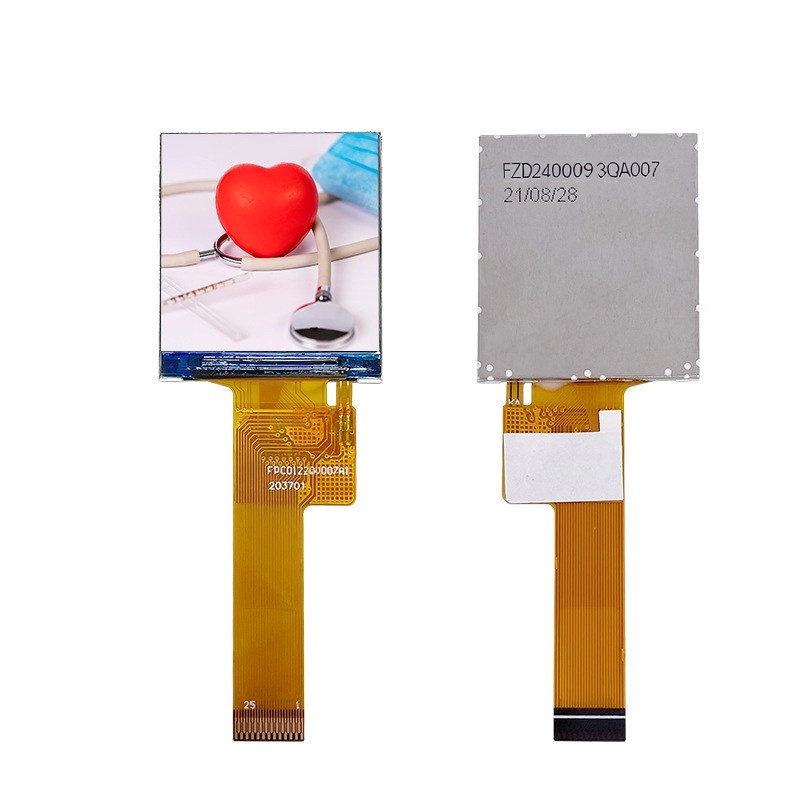

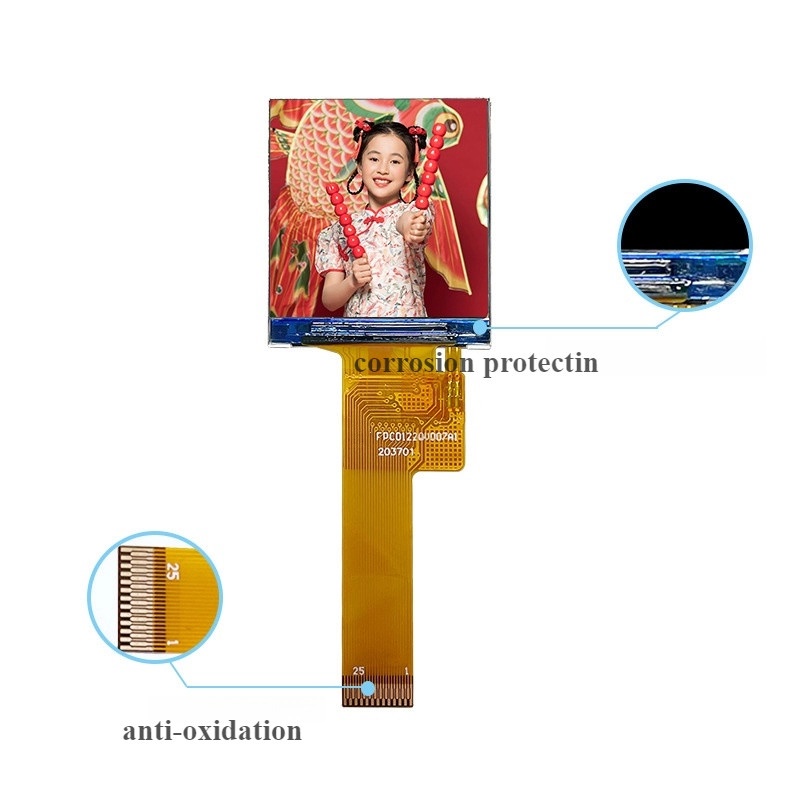

1.22 Inch Ips Square TFT Color Lcd Display 240*240 LCD Module
Product Description
| Item | specification |
|---|---|
Display mode | RT122QV007A |
Part NO. | RT122QV007A |
Resolution | 240*240 |
Outline size | 24.76 (H) X27.66(V) X1.51(T) |
Active area | 21.96(H) X21.96 (V) |
View direction | ALL |
Piexl pitch | 240(RGB)X240 |
Interface | MCU 8bit |
Backlight | 2LEDS |
Surface luminance | 350CD/M2 |
Driver IC | ST7789V2 |
Logic voltage | 2.5V-33V |
Operating temperature | -20℃~70℃ |
Storage temperature | -30℃~80℃ |
