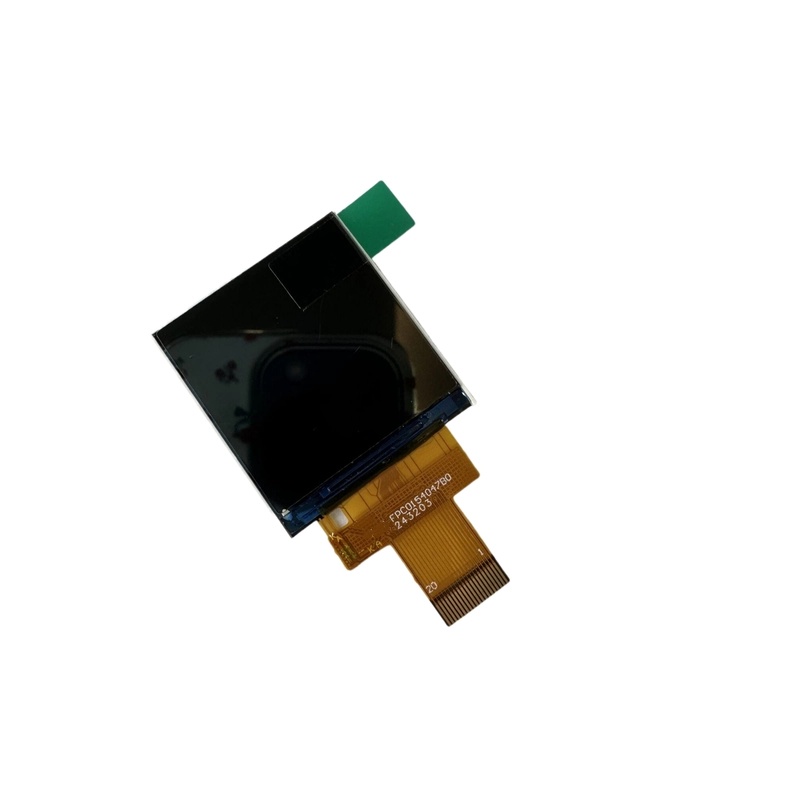

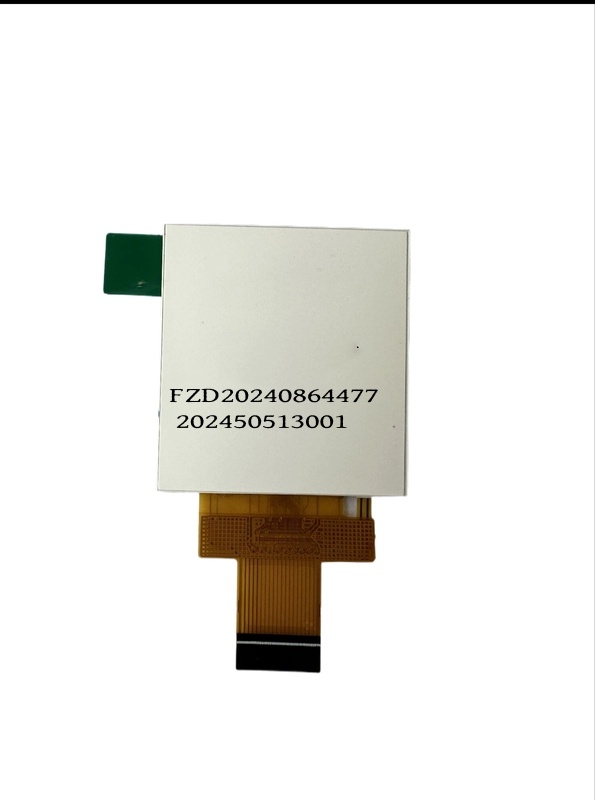

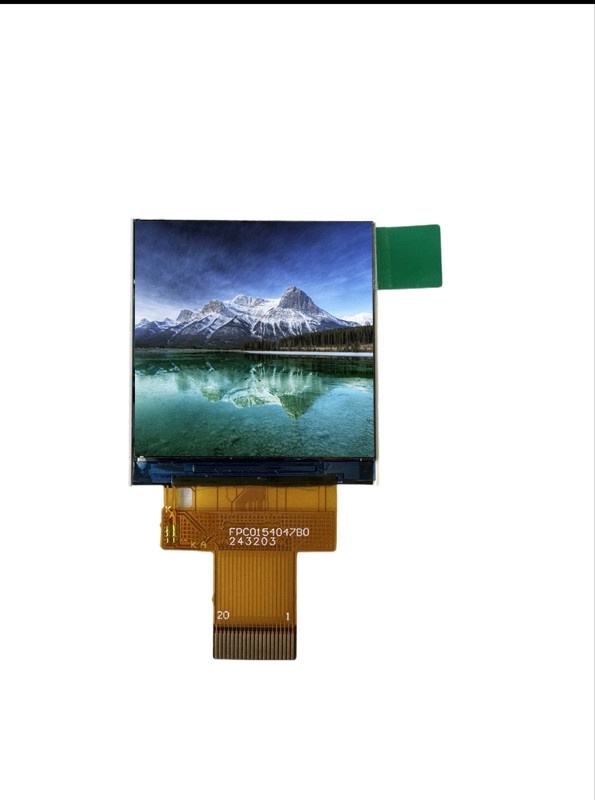

1.54 Inch LCD Tft LCD 240*240 Brightness 700cd
Product Details
Size:
1.54 Inch
Resolution:
240*240
Viewing Direction:
ALL O’clock
LCD Type:
Transmissive TFT

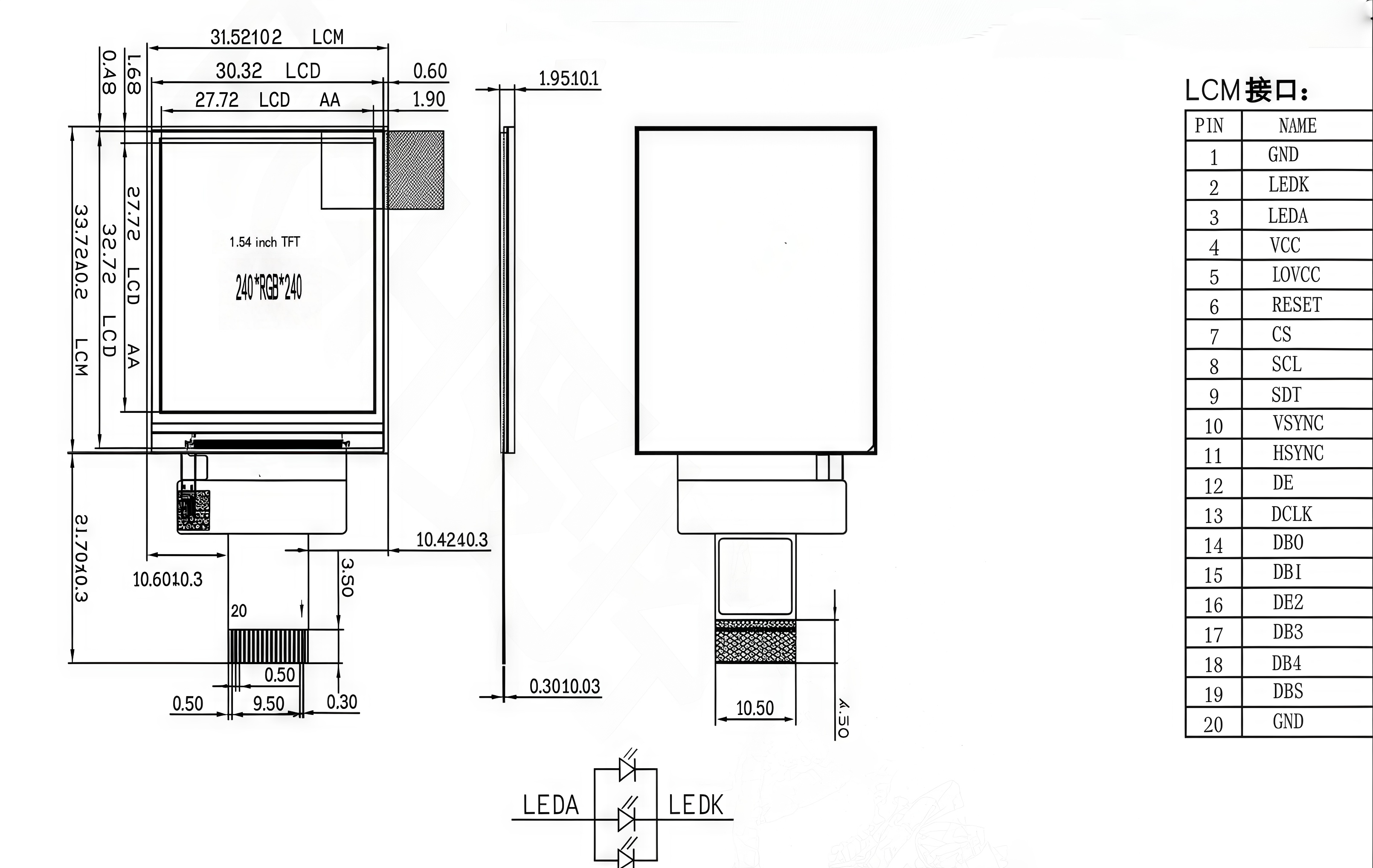

LCM Outline Dimension:
31.52 (H) X33.72(V) X1.95(T) Mm
Viewing Area:
28.72(H) X28.72 (V)
Active Area:
27.72(H) X27.72 (V)
Operating Temperature:
-10℃~60℃
Storage Temperature:
-20℃~70℃
Brightness:
700cd/m²
Driving IC:
ST7789T9-G4-1
Response Time:
30ms
Contrast Ratio:
900:1
