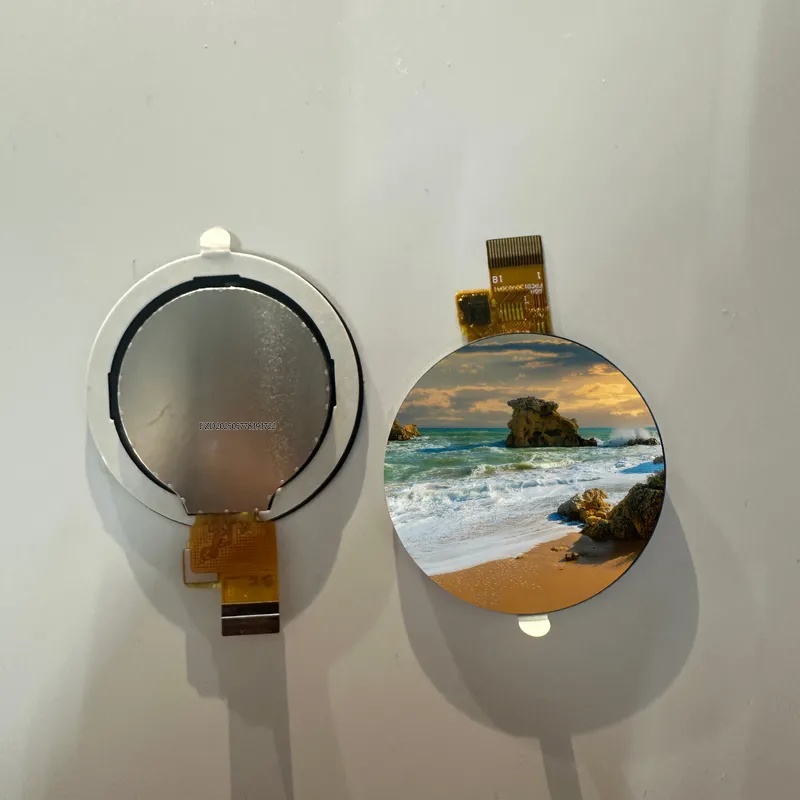

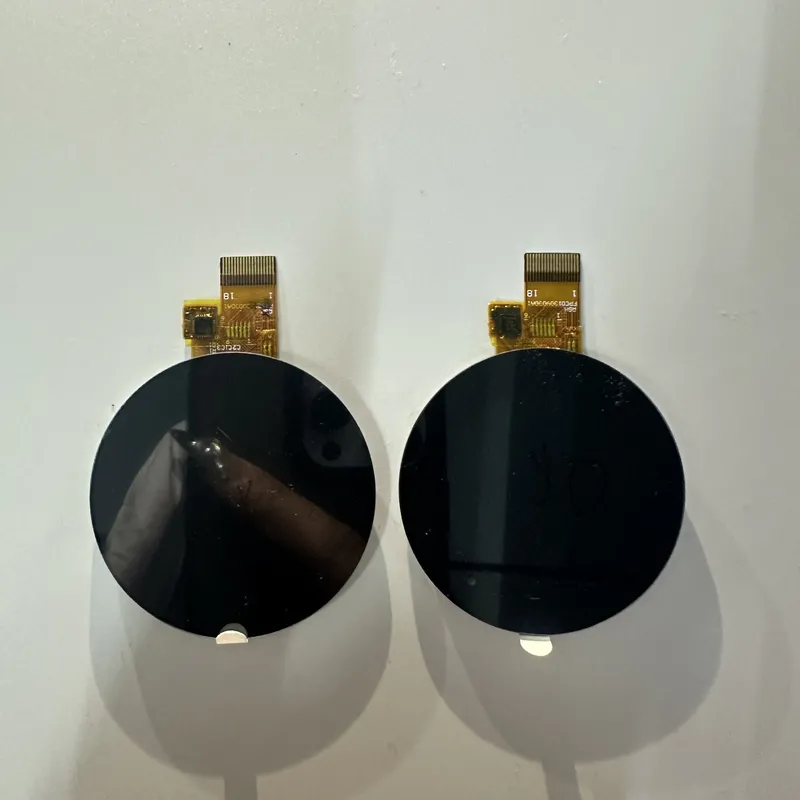

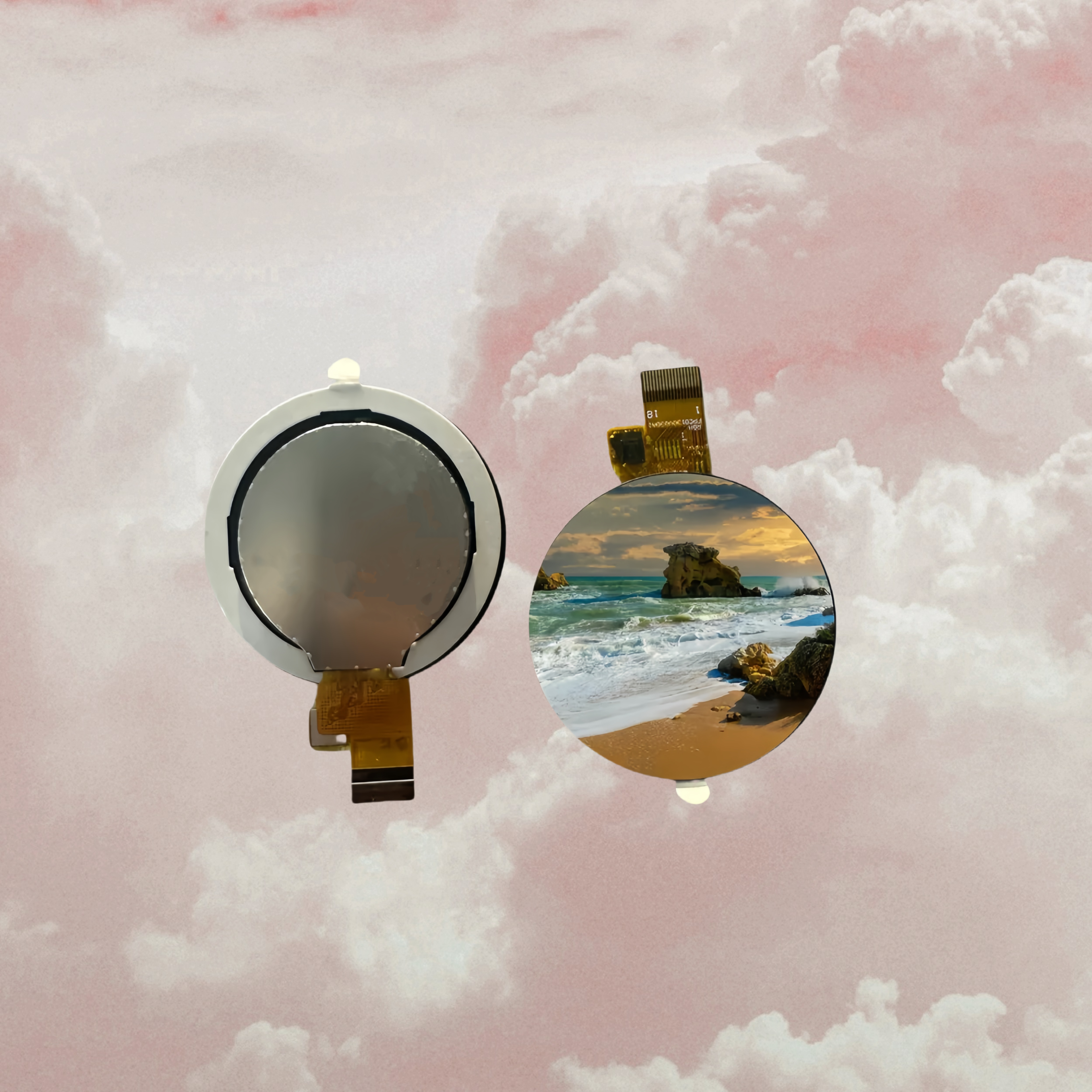

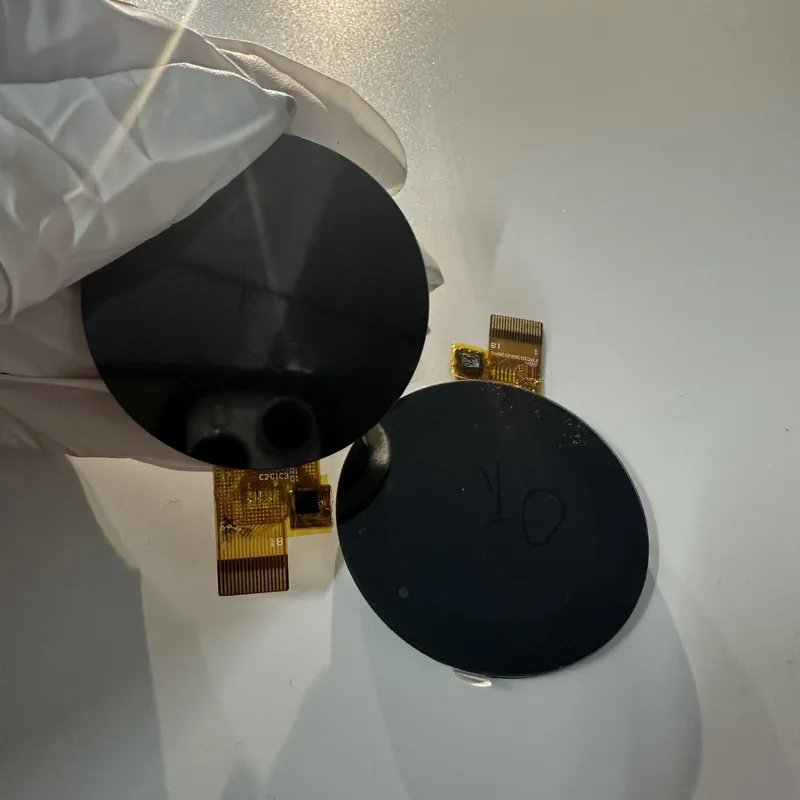

1.3inch IPS TFT 380cd Brightness Circular Touch Lcd Display

Product SpecificationSize1.3inchResolution240(RGB)X240Backlight TypeLEDLCD TypeT...

Product Details

Product Tags

Product Specification
Size	1.3inch
Resolution	240(RGB)X240
Backlight Type	LED
LCD Type	Transmissive TFT
Driving IC	GC9A01
Brightness	380cd/m2
Operating temperature	-20℃~70℃
Active Area	32.4(W) X32.4(H) mm

Interface Pin Definition
NO.	Symbol	Function
1	LEDA	LED,anode.
2	LEDK	LED,cathode.
3	GND	Ground
4	TP-VCC	Power setting
5	TP-RESET	TP RESET PIN
6	TP-INT	TP INT
7	TP-SDA	TP SDA
8	TP-SCL	TP SCL
9	GND	Ground
10	TE	TE
11	SDA	SPl interface input/output pin.
12	WRIA0	command selection pin in 4-line serial interface
13	SCL	This pin is used to be serial interface clock
14	CS	-Chip selection pin
15	RESET	Reset signal.
16	IOVCC	Power supply for digital interface
17	VDD	Power supply.
18	GND	Ground
