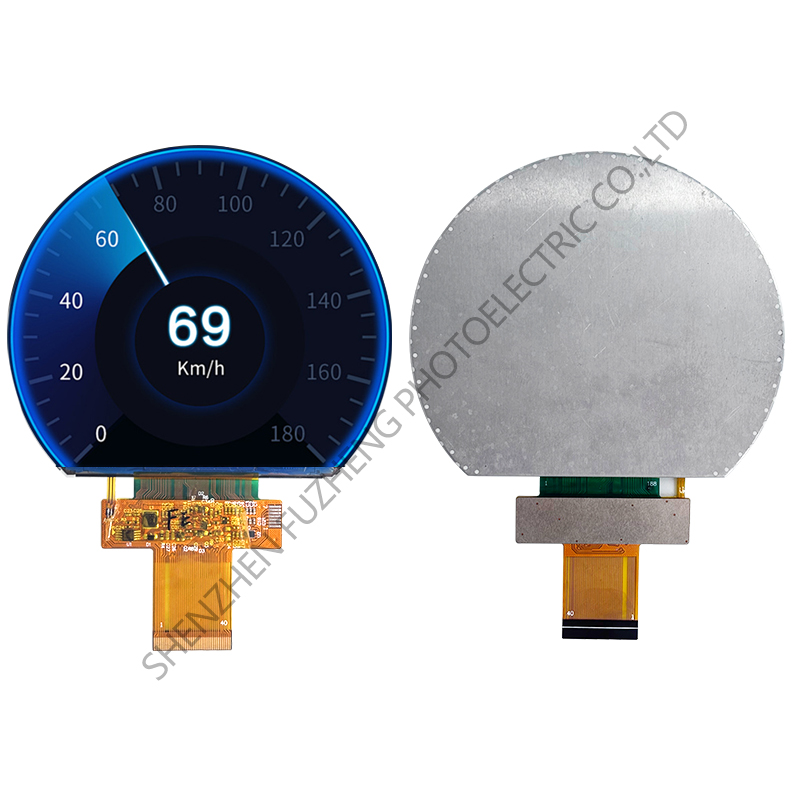

3.54-Inch 480×480 Transmissive TFT LCD Module with LED Backlight and ST7701S Driver

FZ354001C40 is a transmissive type color active matrix TFT (Thin Film Transistor...

Product Details

Product Tags

FZ354001C40 is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 3.54" contains 340 RGB X800 pixels and can display up to 16.7m colors.

Item	Contents	Unit
Model	FZ354001C40
LCD Type	a-Si TFT	/
Viewing Direction	ALL	O' Clock
Size	3.54	inch
Module Outline (W x HxD)	83.79 (H) x 97.6 (V)	mm
Active Area (WxH)	72(H) x 90 (V)	mm
Resolution (pixels)	800(H)X340(V)	/
Backlight Type	7 *1chips white LED	/
Interface Type	LVDS	/
Input Voltage	3.3	V
Luminance	450	cd/m2
Backlight Type And Color:	12 White LED
Controller IC:	FL5893DA
Touch Type:	/
LED Life Span:	25000	hour
Operating Temperature Range:	-20 -- 70 °C
Storage Temperature Range:	-30 -- 80 °C
