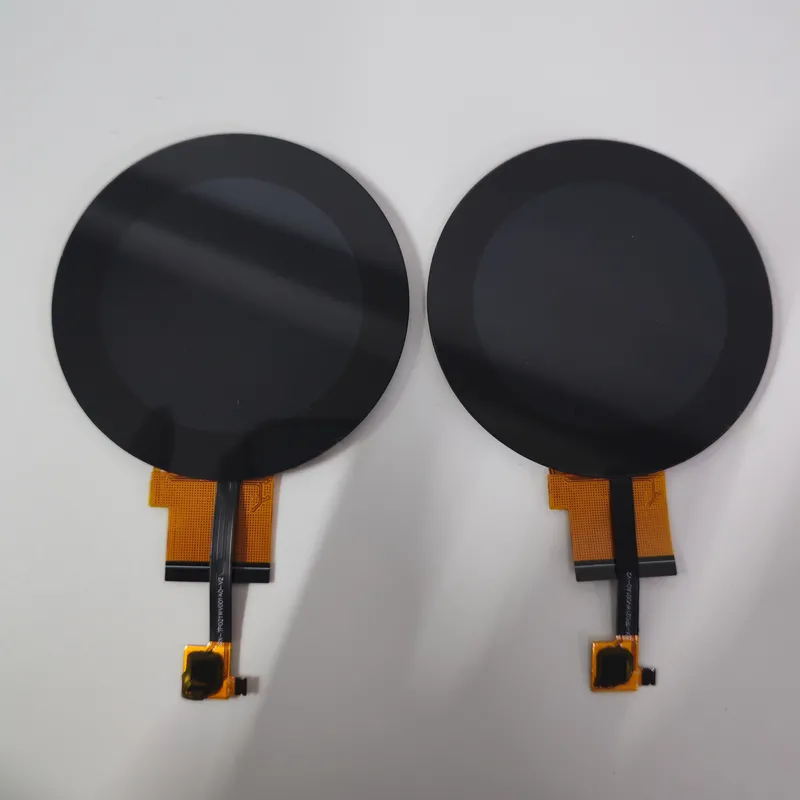

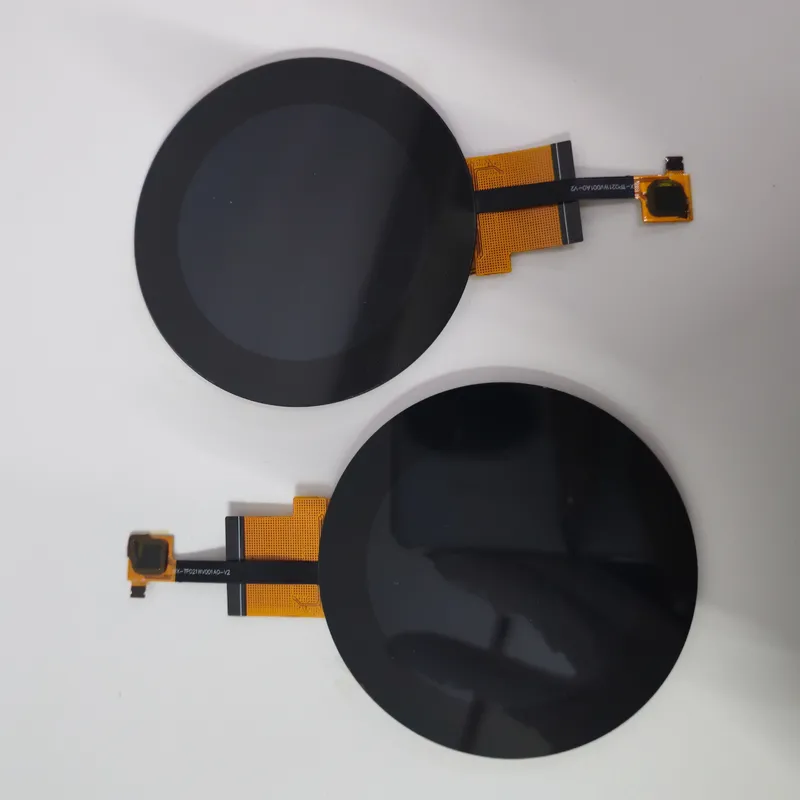

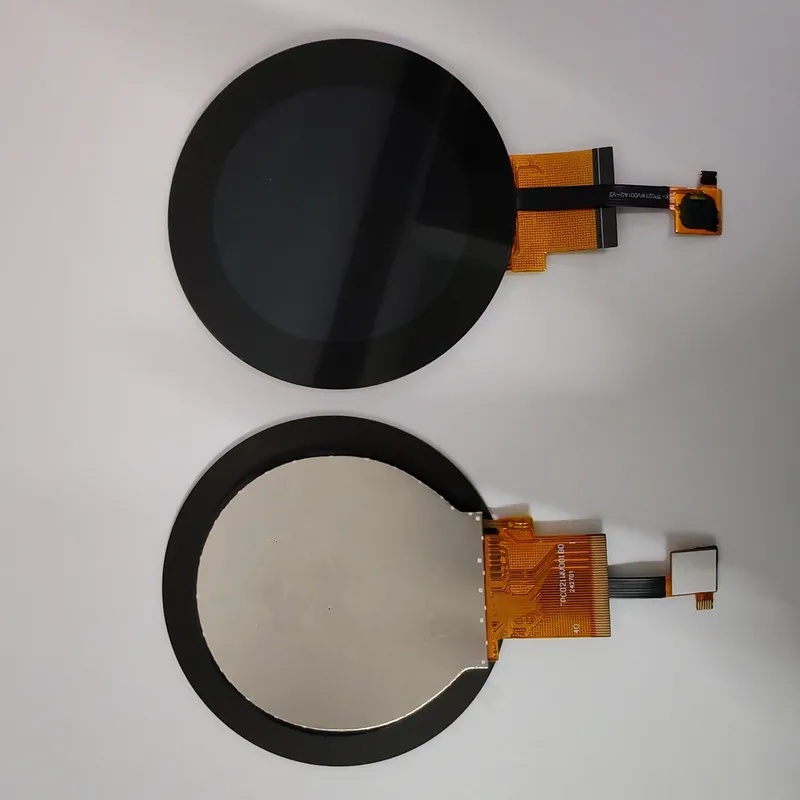

2.1-Inch 480×480 Transmissive TFT LCD Module with LED Backlight and ST7701S Driver

Product SpecificationSize2.1inchResolution480(RGB)X480Backlight TypeLEDLCD TypeT...

Product Details

Product Tags

2.1-Inch 480×480 Transmissive TFT LCD Module with LED Backlight and ST7701S Driver

Product Specification
Size	2.1inch
Resolution	480(RGB)X480
Backlight Type	LED
LCD Type	Transmissive TFT
Driving IC	ST7701S
Brightness	400cd/m2
Operating temperature	-20℃~70℃
Active Area	53.28(H) X53.28V) mm

Interface Pin Definition
NO.	Symbol	Function
RGB
1	LEDK	LED power cathode
2	LEDA	LED power anode
3	GND	Ground
4	VDD	Power setting
5-13	GND	Ground
14	VS	Frame synchronizing signal for RGB.
15	HS	Line synchronizing signal for RGB.
16	PCLK	Dot clock signal for RGB.
17	DE	DE
18-22	B0-B4	Data bus.
23-28	G0-G5	Data bus.
29-33	R0-R4	Data bus.
34	RESET	RESET
35	CS	Chip selection.
36	SCL	Serial interface clock.
37	SDA	Serial in/out signal.
38	IOVcC	Power supply for digital interface
39	GND	Ground
40	IOVcC	Power supply for digital interface
MIPI
1	LEDK	LED power cathode
2	LEDA	LED power anode
3	GND	Ground
4	VDD	Power setting
5	DON	MIPI Data pin Positive
6	D0P	MIPI Data pin Positive
7	GND	Ground
8	CKN	Mipi clock signal
9	CKP	Mipi clock signal
10	GND	Ground
11	D1N	MIPI Data pin Positive
12	D1P	MIPI Data pin Positive
13-33	GND	Ground
34	RESET	RESET
35-38	GND	Ground
39-40	IOvcC	Power supply for digital interface

pl206554741-2_1_inch_480_480_transmissive_tft_lcd_module_with_led_backlight_and_st7701s_driver.jpg

pl206554748-2_1_inch_480_480_transmissive_tft_lcd_module_with_led_backlight_and_st7701s_driver.jpg
