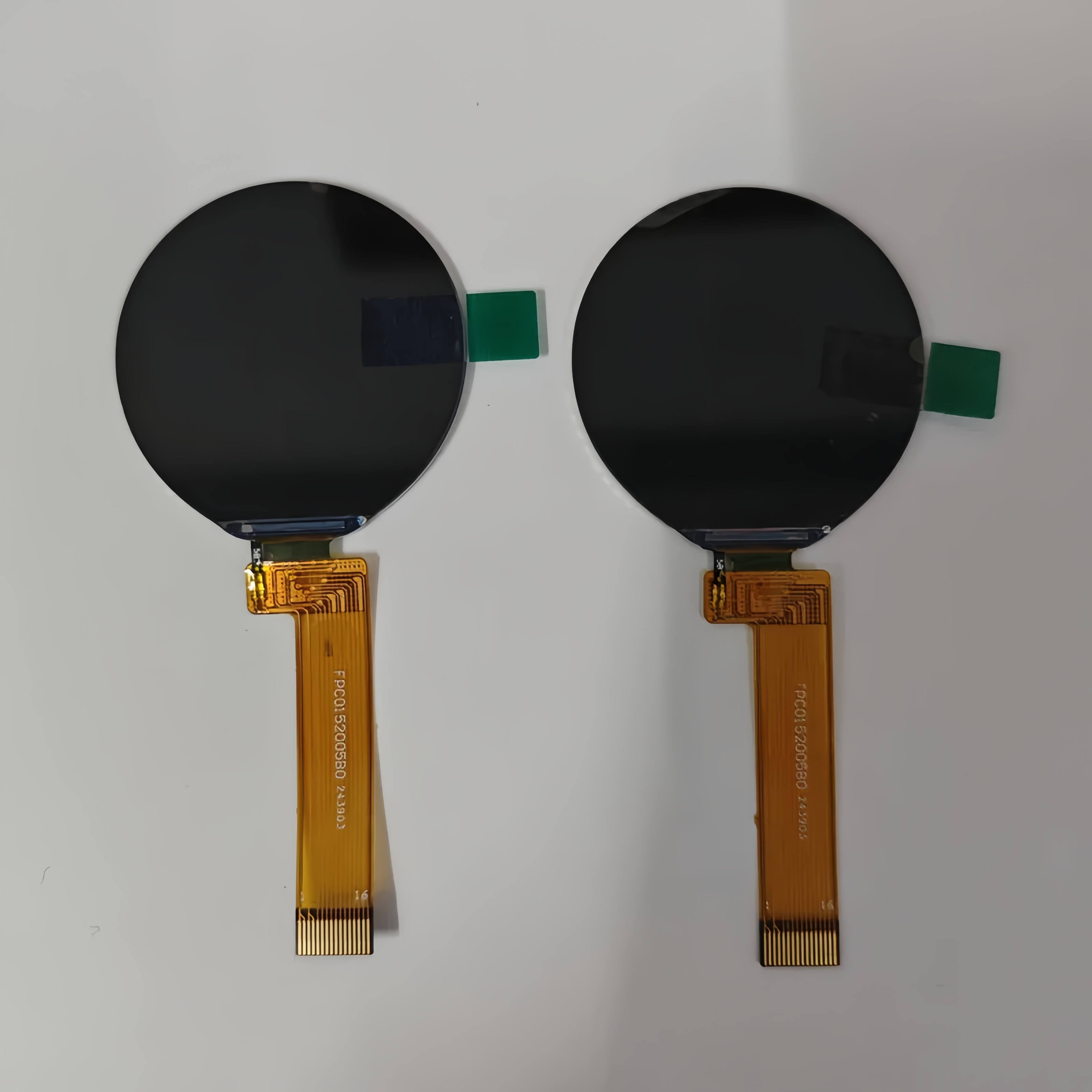

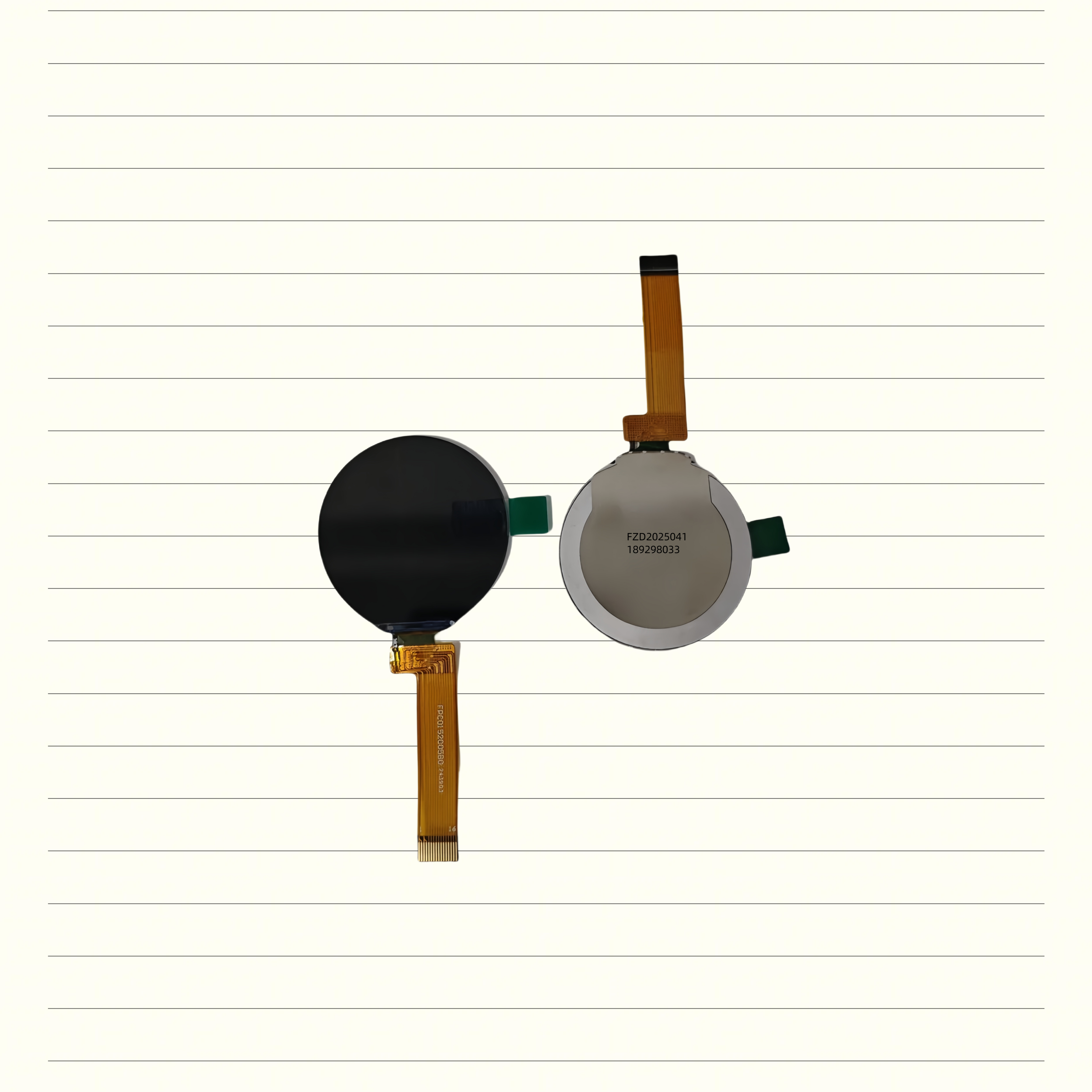

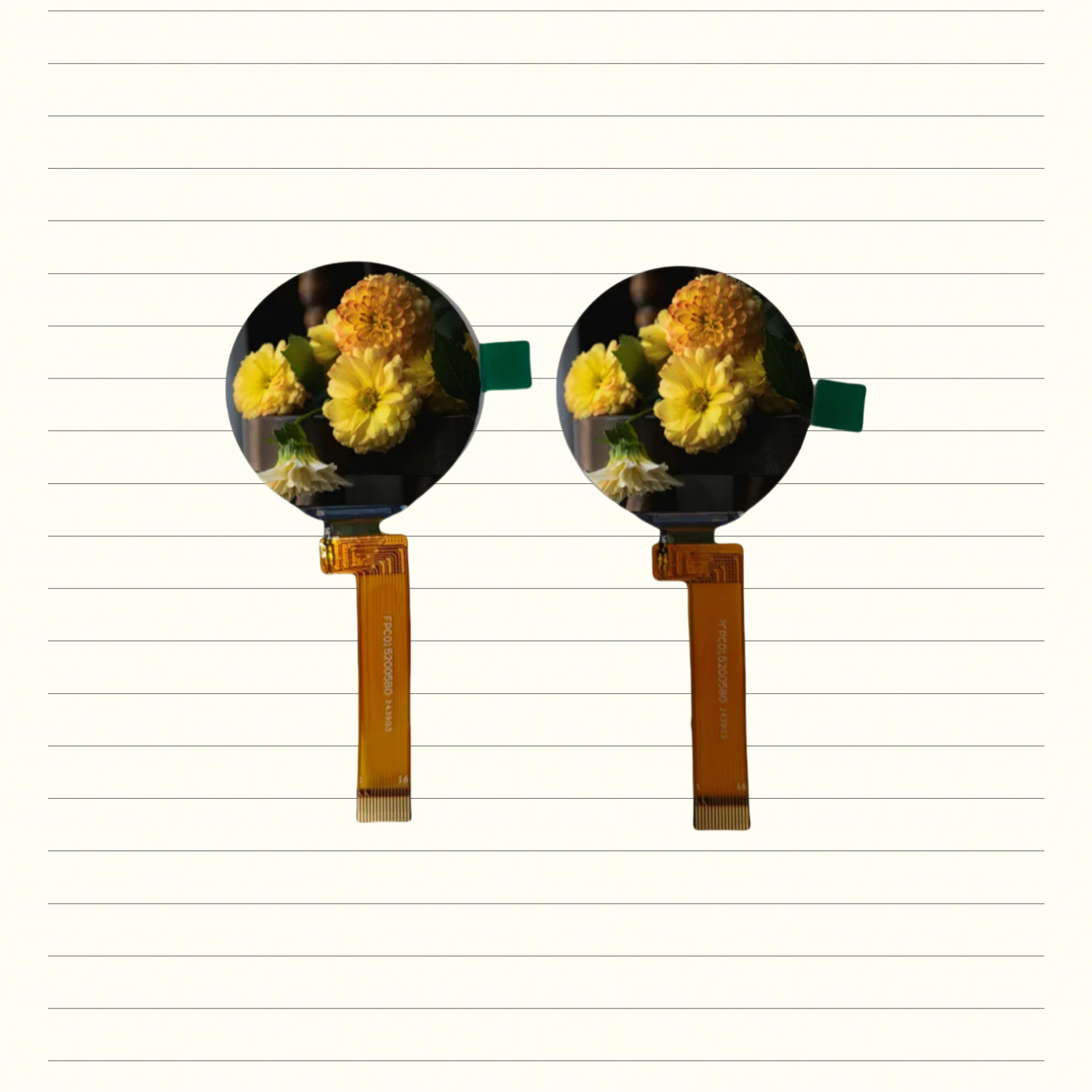

1.52-Inch 360×360 Transmissive TFT Display Module with LED Backlight

Product SpecificationSize1.52inchResolution360(RGB)X360Backlight TypeLEDLCD Type...

Product Details

Product Tags

Product Specification
Size	1.52inch
Resolution	360(RGB)X360
Backlight Type	LED
LCD Type	Transmissive TFT
Driving IC	ST77916
Brightness	400cd/m2
Operating temperature	-10℃~60℃
Active Area	37.58(H) X37.58(V) mm

Interface Pin Definition
NO.	Symbol	Function
45659	LEDK	LED power cathode
45692	LEDA	LED power anode
5	VCC	Power setting
6	IOVCC	The System interface mode select
7	RESET	This signal will reset the device and it must be applied to properly initialize the chip
8	CS	-Chip select pin.
9	GND	Ground
10	SCL	Serial clock input for SPI interface.
11	GND	Ground
12	SDA	Serial data input/output bidirectional pin for SPI Interface.
13	A0	Write enable in MCU parallel interface. Dot clock signal in RGB interface. (DOTCLK)
14	TE	Tearing effect signal is used to synchronize MCU to frame memory writing
15	GND	Ground
16	IM1/IM2	IM1/IM2
