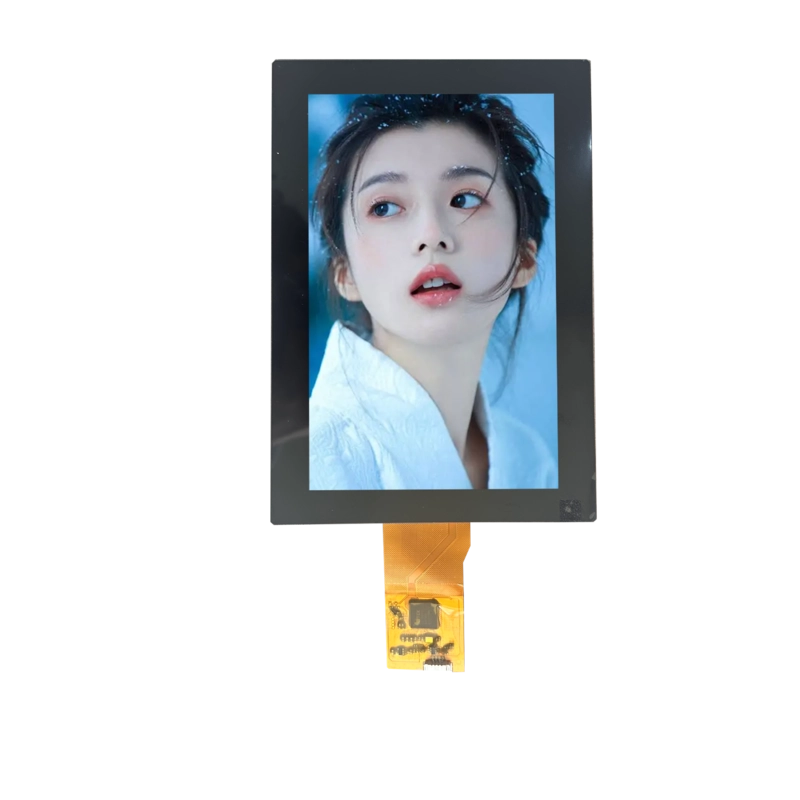

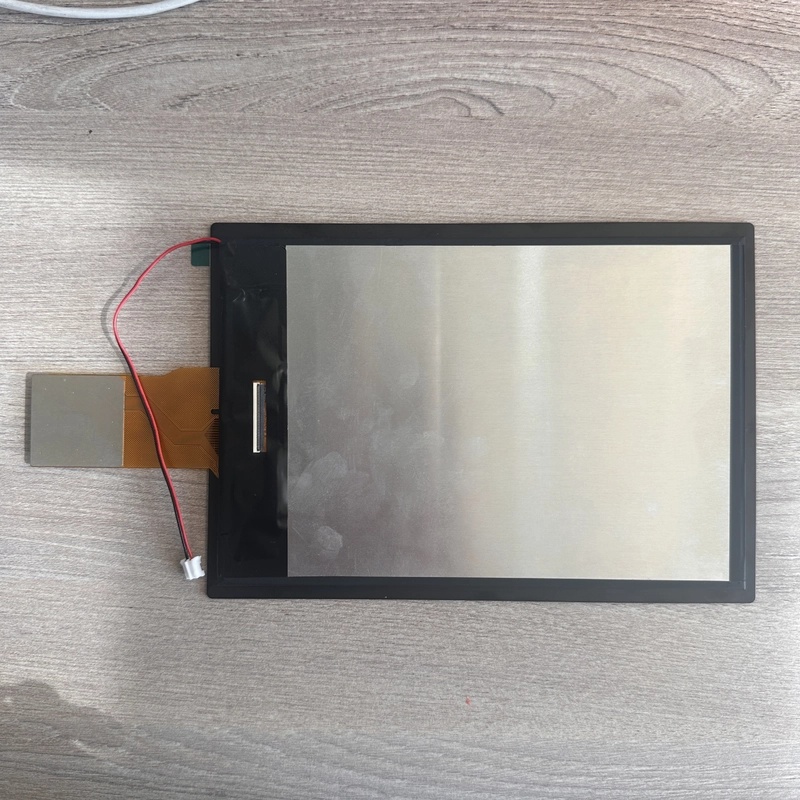

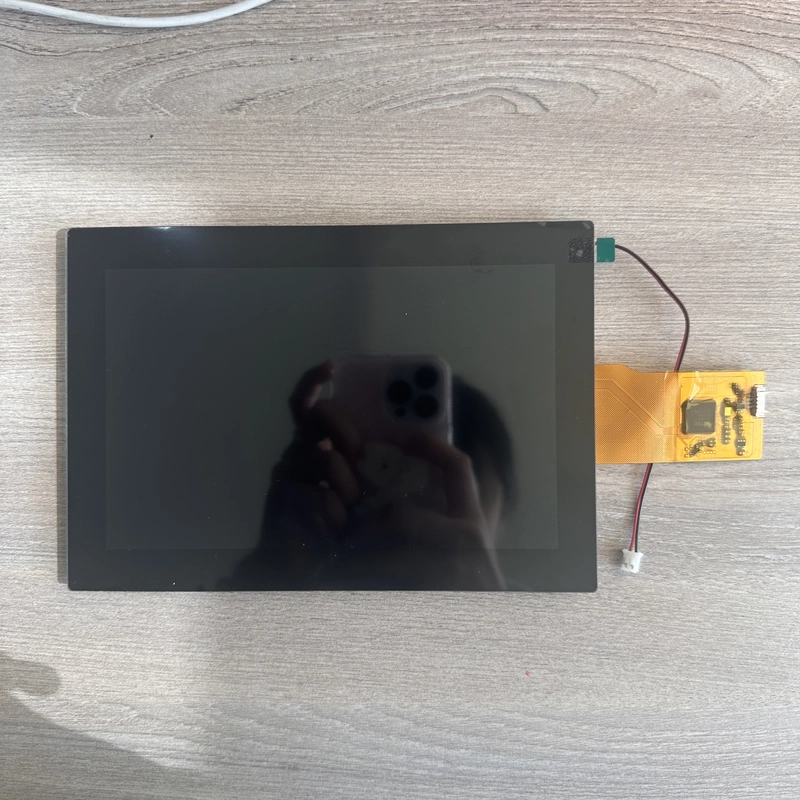

7.0 Inch 1200×1920 MIPI TFT LCD Display Module With Hard Coating
Product Details
Size:
7.0inch
Display Resolution:
1200*3(RGB)*1920
LCD Mode:
A-Si TFT/transmissive
Outline Dimension:
111.0(H) *166.0(V) *3.29(T) Mm
Active Area:
94.5*(H) * 151.2(V) Mm
Pixel Arrangement:
RGB-stripe
Viewing Direction:
80/80/80/80
Display Mode:
Normally Black
IC Package Type:
COG
Surface Treatment:
Hard Coating
Interface:
MIPI
Response Time:
30ms
