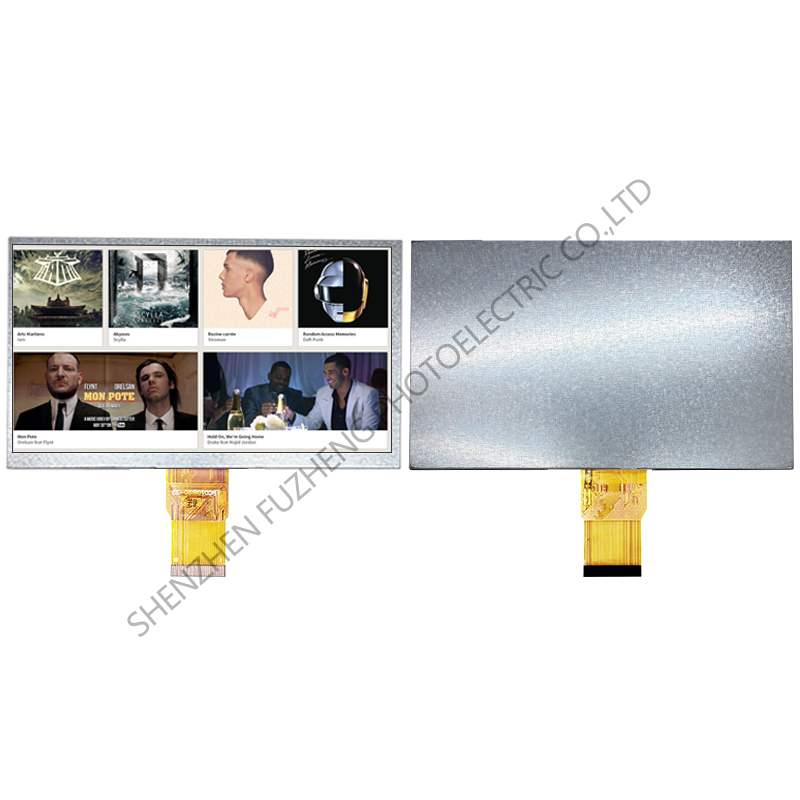

7 inch RGB TFT Display 1024*600
| Item | Contents | Unit |
| Model | FZ7001R50 | |
| LCD Type | TFT | / |
| Viewing direction | ALL | O' Clock |
| Size | 7 inch | inch |

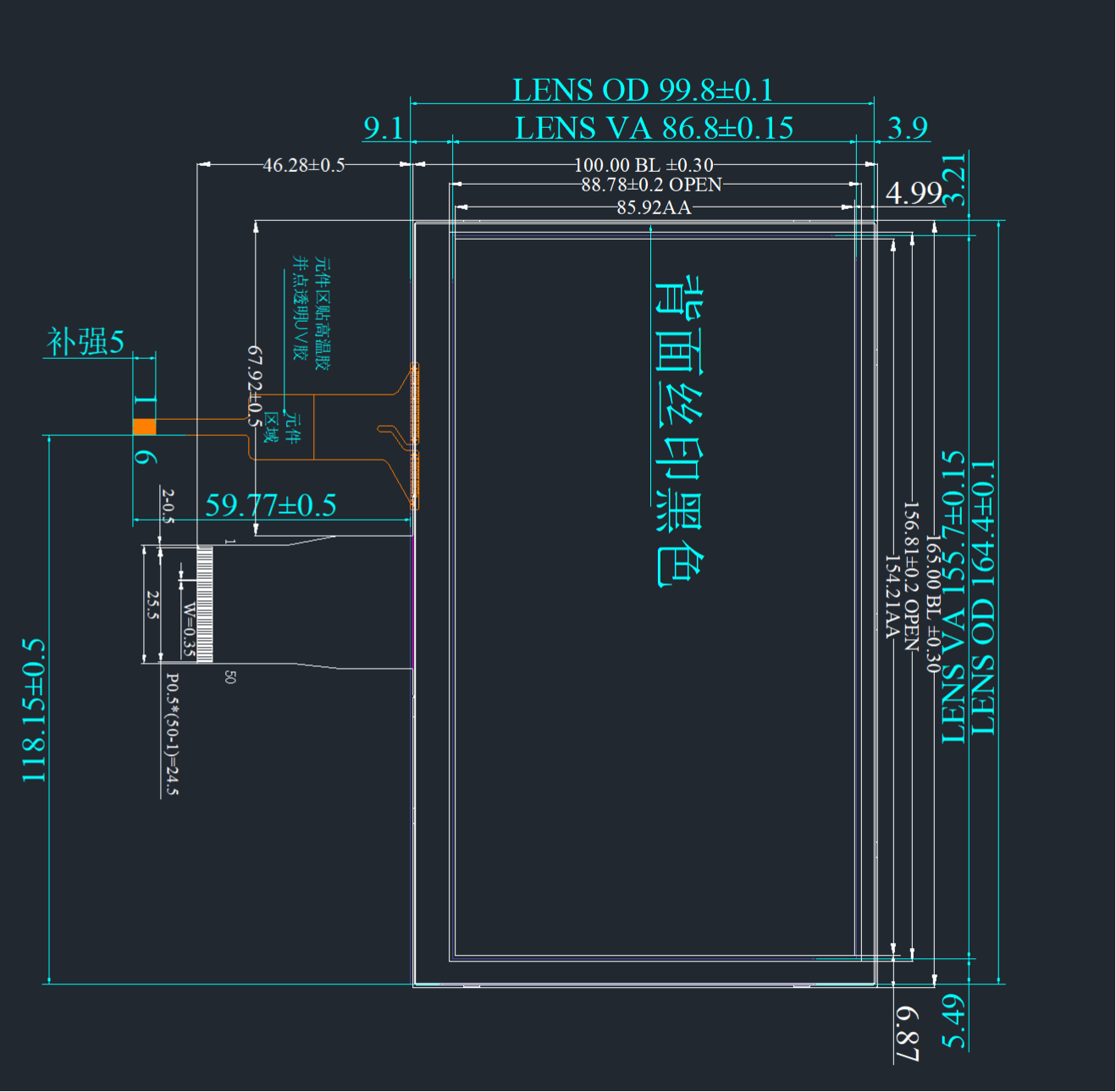

| Module outline (W x HxD) | 165(H) ×100(V) × 3.5(T) | mm |
| Active area (WxH) | 154.2144(H) *85.92(V) | mm |
| Resolution (pixels) | 1024*600 | / |
| Interface Type | RGB | / |
| Input voltage | 3.3 | V |
| Luminance | 400 | cd/m2 |
| Backlight type and color: | 3*6 chips white LEDS | |
| Controller IC: | HX8282/HX8696 | |

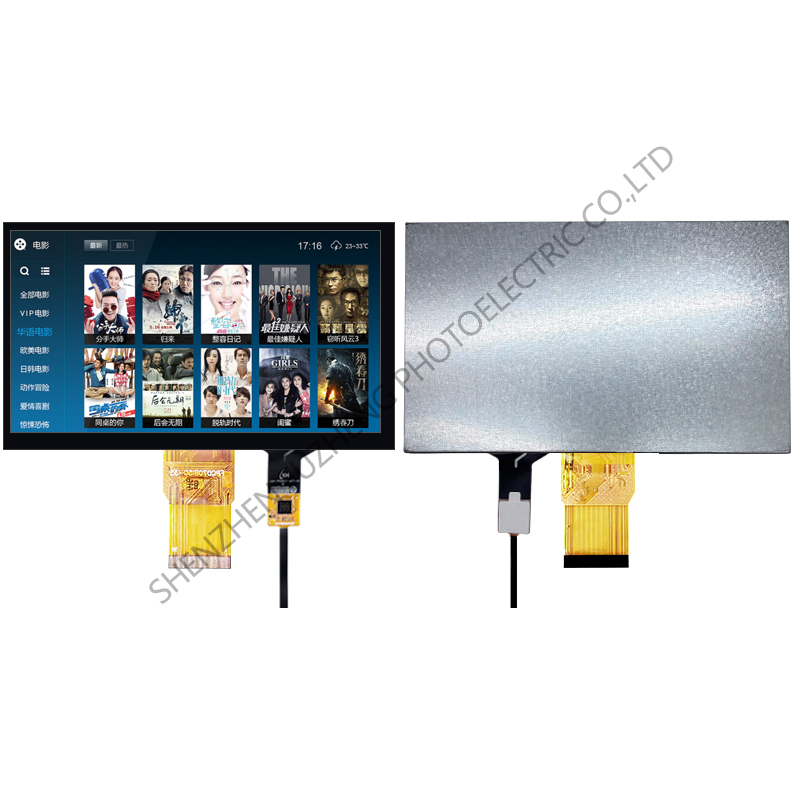

| Touch type: | CTP (capacitive touch panel) | |
| LED Life span: | 25000 | hour |
| Operating temperature range: | -20 -- 70 °C | |
| Storage temperature range: | -30 -- 80 °C |
Electrical Specifications
Parameter | Symbol | Values | Unit | Remark | ||
Min. | Typ. | Max. | ||||
Digital supply voltage | VDD | 3 | 3.3 | 3.6 | V | |
Analog supply voltage | AVDD | - | 9.6 | - | V | |
TFT Gate ON Voltage | VGH | - | 18 | - | V | |
TFT Gate OFF Voltage | VGL | - | -6 | - | V | |
TFT Common Electrode Voltage | VCOM | - | 3.2 | - | V | |
Notes :
1. VGH is TFT Gate operating voltage.
2. VGL is TFT Gate operating voltage. The low voltage level of VGL signal must be
fluctuates with same phase as Vcom.
3. Vcom must be adjusted to optimize display quality, as Crosstalk and Contrast Ratio etc..
4. The value is just the reference value. The customer can optimize the setting value by the
different D-IC
Current Consumption
Item | Symbol | Values | Unit | Remark | ||
Min. | Typ. | Max. | ||||
Current for Driver
| IGH | - | 0.50 | 10 | mA | |
IGL | - | 0.50 | 10 | mA | ||
IVDD | - | 35 | 140 | mA | ||
IAVDD | - | 35 | 70 | mA | ||
Backlight Charac Teristics
Item | Symbol | Min | Typ | Max | Unit | Condition |
Forward voltage | Vf | - | 9 | - | V | If=120mA |
Luminance | Lv | - | 400 | - | cd/m2 | If=120mA |
Number of LED | -- | 18 | Piece | -- | ||
Connection mode | P | 3*6 chips serial | -- | -- | ||
