7 inch MIPI TFT Display 1024*600

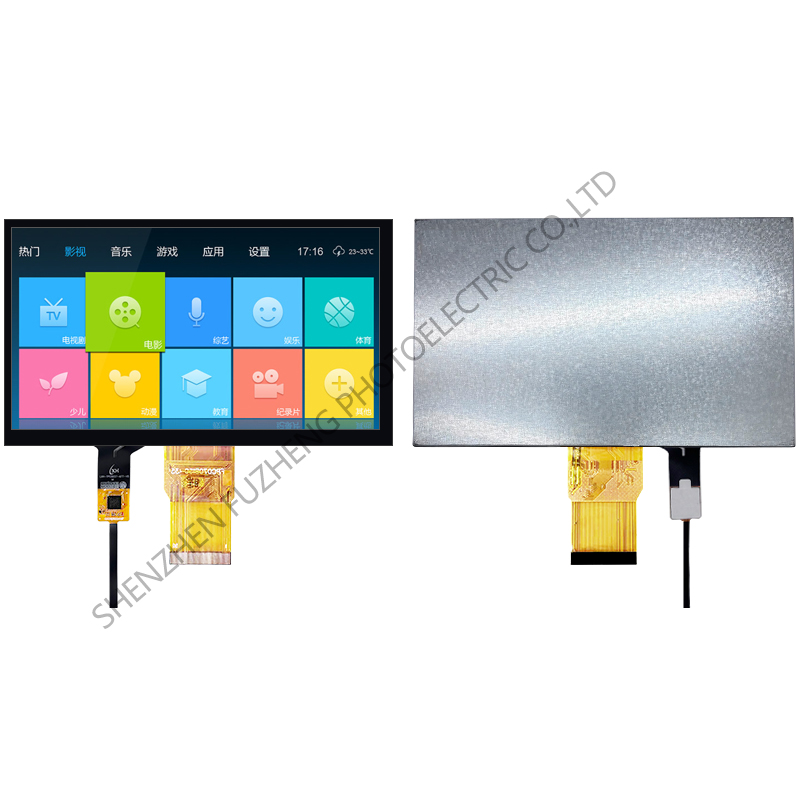

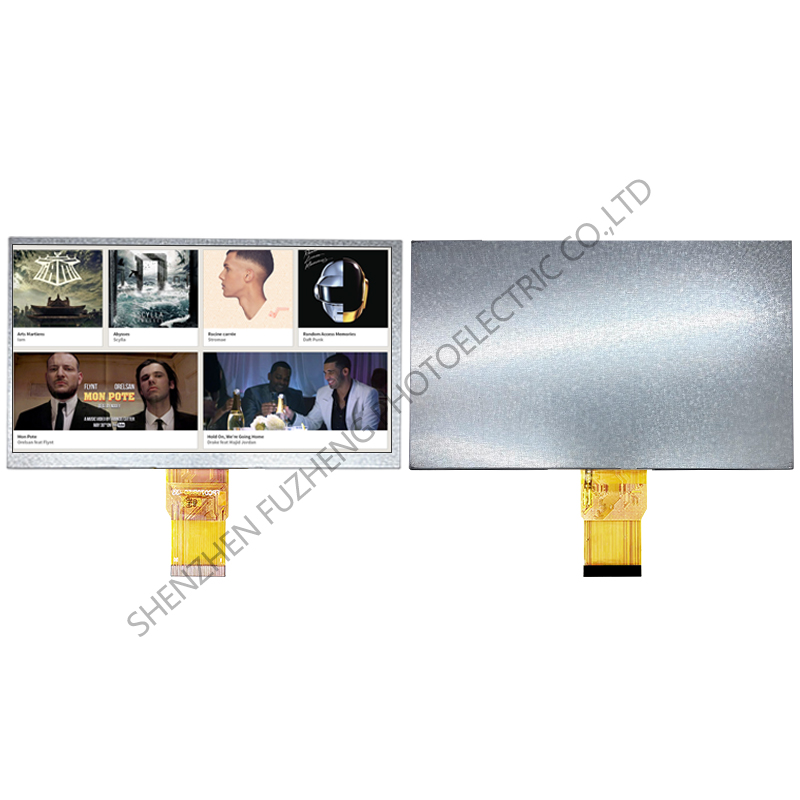

FZ7001M30-TP is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 1024x 600pixels. This product accords with RoHS environmental criterion.
| Item | Contents | Unit |
| Model | FZ7001M30-TP | |
| LCD Type | TFT | / |
| Viewing direction | ALL | O' Clock |
| Size | 7 inch | inch |

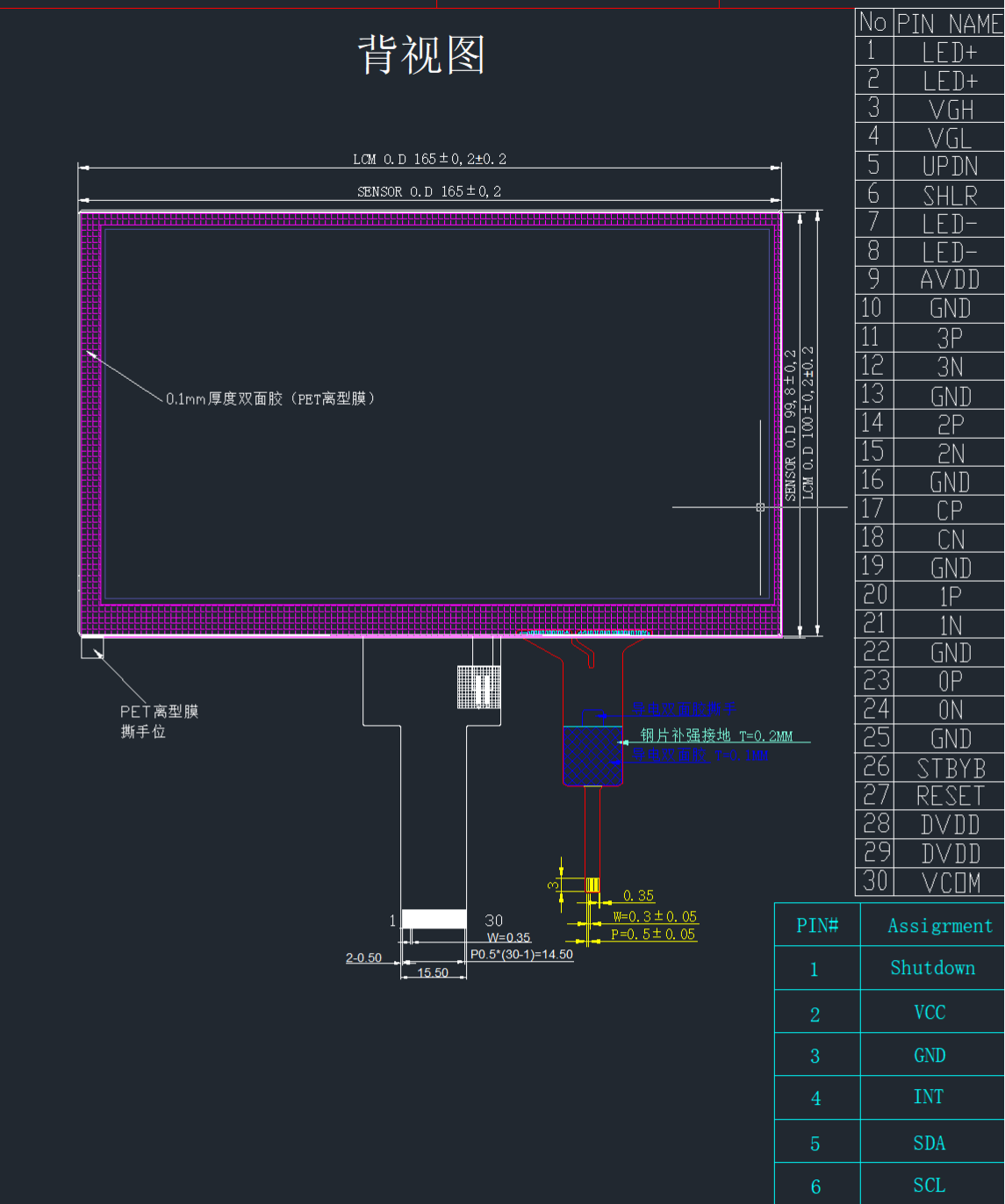

| Module outline (W x HxD) | 165(H) ×100(V) × 3.5(T) | mm |
| Active area (WxH) | 154.2144(H) *85.92(V) | mm |
| Resolution(pixels) | 1024*600 | / |
| Interface Type | 4 LANE MIPI | / |
| Input voltage | 3.3 | V |
| Luminance | 400 | cd/m2 |
| Backlight type and color | 3*6 chips white LEDS | |
| Controller IC: | HX8282/HX8696 | |
| Touch type: | CTP (capacitive touch panel) | |
| LED Life span: | 25000 | hour |
| Operating temperature range: | -20 -- 70 °C | |
| Storage temperature range: | -30 -- 80 °C |
ELECTRICAL CHARACTERISTICS
Item | Symbol | Values | Unit | Remark | ||
Min. | Typ. | Max. | ||||
Power Voltage | DVDD | 3.0 | 3.3 | 3.6 | V | |
AVDD | 8.8 | 9 | 9.4 | V | ||
VGH | 18 | 19 | 20 | V | ||
VGL | -6 | -7 | -8 | V | ||
Input signal voltage | VCOM | 3.5 | 3.6 | 3.8 | V | |
Input logic high voltage | VIH | 0.7VDD | - | DVDD | V | |
Input logic low voltage | VIL | 0 | - | 0.3DVDD | V | |
Note1：If users use the product out off the environmemtal operation range（temperature and humidity）,it will have visual quality concerns.
Note2：Be sure to apply DVDD and VGL to the LCD first,and then apply VGH
Note3：DVDD setting should match the signals output voltage(refer to Note4)of customer's system board.
Note4：DCLK,HS,VS,RESET,U/D,L/R,DE,R0-R7.G0-G7,B0-B7,MODE,DITHB.

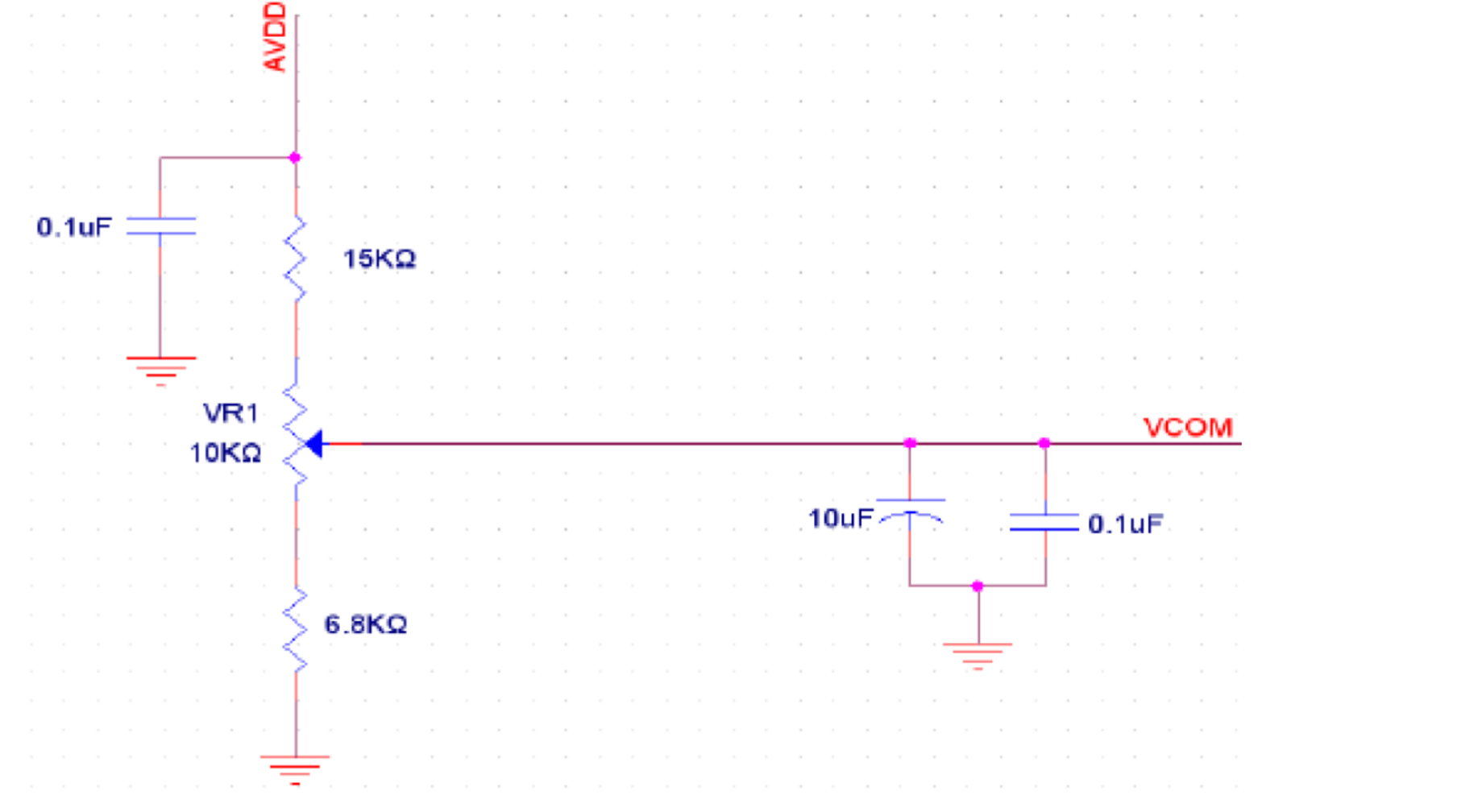

Note5：Typical VCOM is only a reference value,it must be optimized according to each LCM. Please ues VR and base on below application circuit.
Current Consumption
Item | Symbol | Values | Unit | Remark | ||
Min. | Typ. | Max. | ||||
Current for Driver
| IGH | - | 0.50 | 1 | mA | VGH=18.0V |
IGL | - | 0.50 | 1 | mA | VGL=-6.0V | |
IVDD | - | 8 | 15 | mA | VDD=3.3V | |
IAVDD | - | 30 | 40 | mA | AVDD=9.6V | |
BACKLIGHT CHARACTERISTICS
Item | Symbol | Min | Typ | Max | Unit | Condition |
Forward voltage | Vf | - | 9.0 | - | V | If=180mA |
Luminance | Lv | - | 400 | - | cd/m2 | If=180mA |
Number of LED | -- | 27 | Piece | -- | ||
Connection mode | P | 3chips serial *9 | -- | -- | ||
